Features
  • 300 W RMS power handling
  • 128 dB max SPL
  • 67 ÷ 20000 Hz frequency range
  • 120° x 60° constant directivity coverage angle
  • 1 x 10" high power woofer
  • 1 x 1.5" voice coil compression driver
  • High quality Baltic birch plywood cabinet
  • Steel front grille with double mesh polyester clothing
  • Installation points available on rear, top and bottom panels
  • Speakon® NL4 connector (audio input and parallel link output)

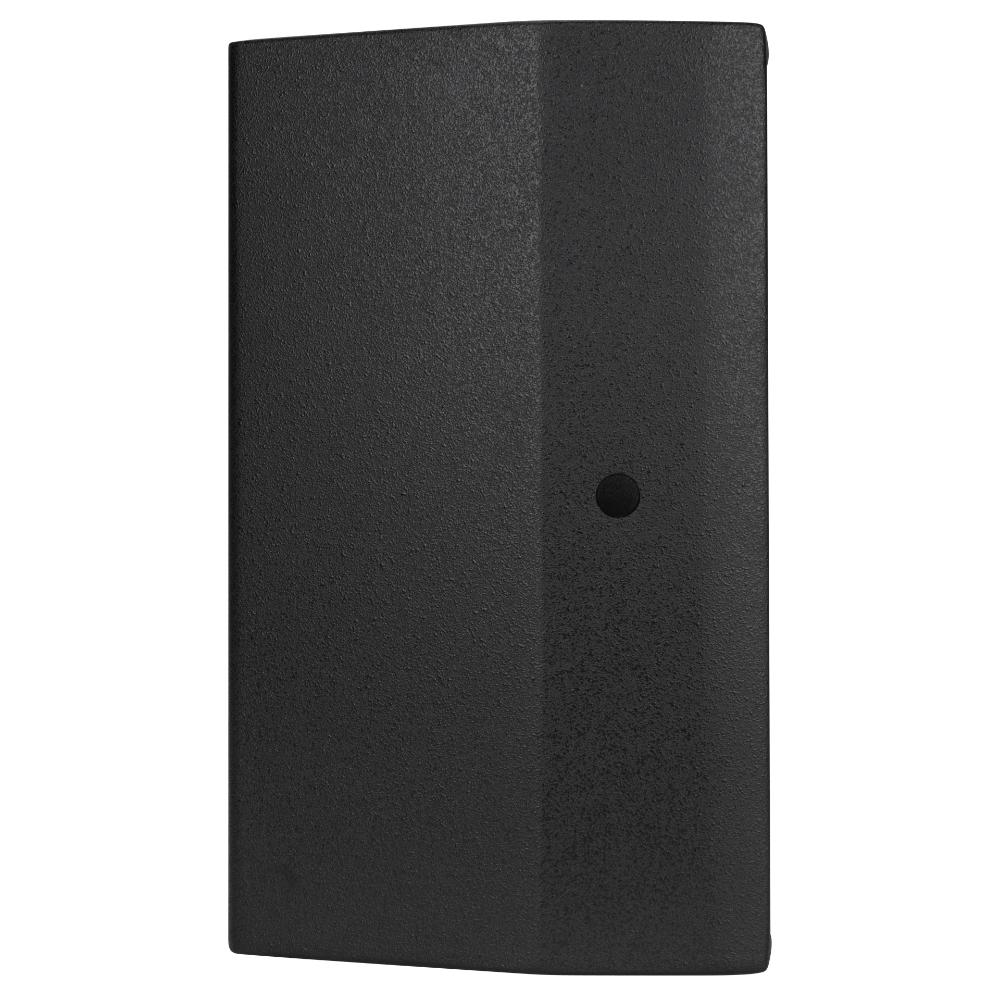

The C3110 is a full range extremely versatile wide-dispersion, low profile, two-way loudspeaker system for near field applications. Its compact size makes it ideal for low visibility side wall mounting.The high-frequency section is a constant directivity horn loaded to a 1” compression driver with a 1.5” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 10” woofer with a 2” voice coil.


AVAILABLE ON ORDER

Part number:

13000284
C 3110-126
EAN 8024530009175

Specifications
Acoustical specifications
Frequency Response (-10dB)
67 Hz ÷ 20000 Hz
Max SPL @ 1m
128 dB
Horizontal coverage angle
120°
Vertical coverage angle
60°
Directivity index Q
9
System Sensitivity
97 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
300 W
Peak Power Handling
1200 W PEAK
Protections
Dynamic active mosfet
Crossover Frequencies
2200 Hz
Recommended Amplifiers
QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K
Transducers
Compression Driver
1.0'', 1.5'' v.c
Woofer
10'', 2.0'' v.c
Input/Output section
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
8 x M8 (rear), 2 x M10 (lateral), multiplates (top and bottom)
Pole mount/Cap
Yes
Grille
Steel with robust double mesh polyester clothing
Color
Black
Size
Height
500 mm / 19.69 inches
Width
300 mm / 11.81 inches
Depth
298 mm / 11.73 inches
Weight
15.8 kg / 34.83 lbs
Shipping information
Package Height
564 mm / 22.2 inches
Package Width
399 mm / 15.71 inches
Package Depth
384 mm / 15.12 inches
Package Weight
17.7 kg / 39.02 lbs
