Features
  • 40W RMS power handling
  • 110 dB max SPL
  • 80 ÷ 20000 Hz frequency range
  • 130° constant directivity conical coverage angle
  • 5" high power woofer
  • 1" neodymium dome tweeter
  • Self-extinguishing plastic cabinet and metal backcan
  • Steel magnetic front grille
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable

CMR 50T is a multipurpose two-way in-ceiling speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, CMR 50T pairs any building's aesthetic. The high-quality transducers, aligned in a coaxial configuration, guarantees a precise music reproduction of the entire frequency band and provides impressive sound pressure levels for such a compact enclosure. Installation is easy with three long travel clamps. The magnetic grille allows immediate access to the power selector on the front shell: the line transformer provides 40W full power on 70V and 100V constant voltage lines, and five different power levels.

Part number:

13100044
CMR 50T W
White - RAL 9003, EAN 8024530017439

Multipurpose sound

Music nurtures engagement and hospitality inside any social or shopping environment. With a wide conical coverage angle of 130°, CMR speakers feature two transducers in a coaxial configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction.

All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance, even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Responsive Image
Responsive Image

Smooth installation

Housed in a compact self-extinguishing cabinet with a metal backcan, all models feature Euroblock inputs, a line transformer for 70V-100V systems, and quick and easy installation. Each model provides accessory options to increase flexibility. The front magnetic grille can be removed quickly and allows immediate action of the power selector on the front baffle.

Uncompromised performance

Quality components and careful acoustic design make the CMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces.
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB)
80 Hz ÷ 20000 Hz
Max SPL @ 1m
110 dB
Coverage angle
130°
System Sensitivity
88 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
40 W RMS
Peak Power Handling
160 W PEAK
Crossover Frequencies
2500
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P
Transducers
Dome Tweeter
1 x 1.0'' neo, 1.0'' v.c
Woofer
1 x 5.0'', 1.0'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Constant Voltage Transformer
70/100 V
Power selection 1
40 W - 250 ohm
Power selection 2
20 W - 500 ohm
Power selection 3
10 W - 1000 ohm
Power selection 4
5 W - 2000 ohm
Power selection 5
2.5 W - 4000 ohm
Standard compliance
Safety agency
CE compliant, UL 1480A
Physical specifications
Cabinet/Case Material
ABS
Hardware
Steel backcan
Grille
Steel
Color
White - RAL 9003
Size / Weight
Depth
151 mm / 5.94 inches
Recessed Depth
142 mm / 5.59 inches
Diameter
300 mm / 11.81 inches
Cut out diameter
260 mm / 10.24 inches
Weight
4 kg / 8.82 lbs
Shipping information
Package Height
229 mm / 9.02 inches
Package Width
362 mm / 14.25 inches
Package Depth
362 mm / 14.25 inches
Package Weight
5.5 kg / 12.13 lbs

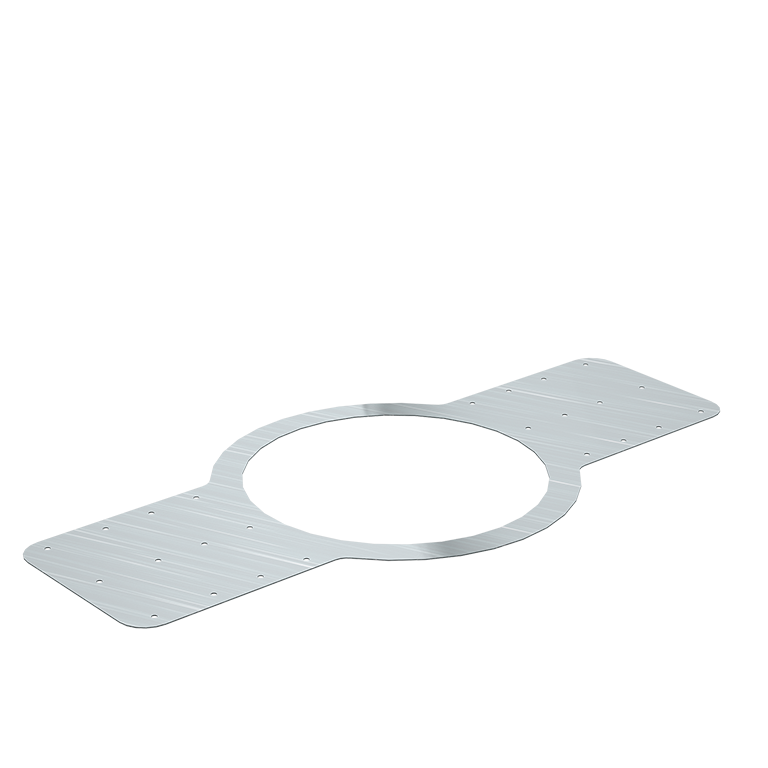

Accessories
