NEW
INSTALLED

COMPACT C 32 WP

TWO-WAY PROFESSIONAL SPEAKER
  • 600 W power handling (RMS)
  • 137 dB max SPL
  • 54 ÷ 20000 Hz frequency range
  • 100° x 50° constant directivity coverage angle
WEATHERPROOF
Where to buy
Features Specifications Accessories Downloads
Where to buy
Features
  • 600 W power handling (RMS)
  • 137 dB max SPL
  • 54 ÷ 20000 Hz frequency range
  • 100° x 50° constant directivity coverage angle
  • 1 x 12" high power neodymium woofer
  • 1 x 3.0" v.c. neodymium compression driver
  • High quality birch plywood cabinet
  • Steel front grille with water-repellent protection
  • Installation points available on top, bottom, rear and side panels
  • 2 x eco|mate IP 67 connectors

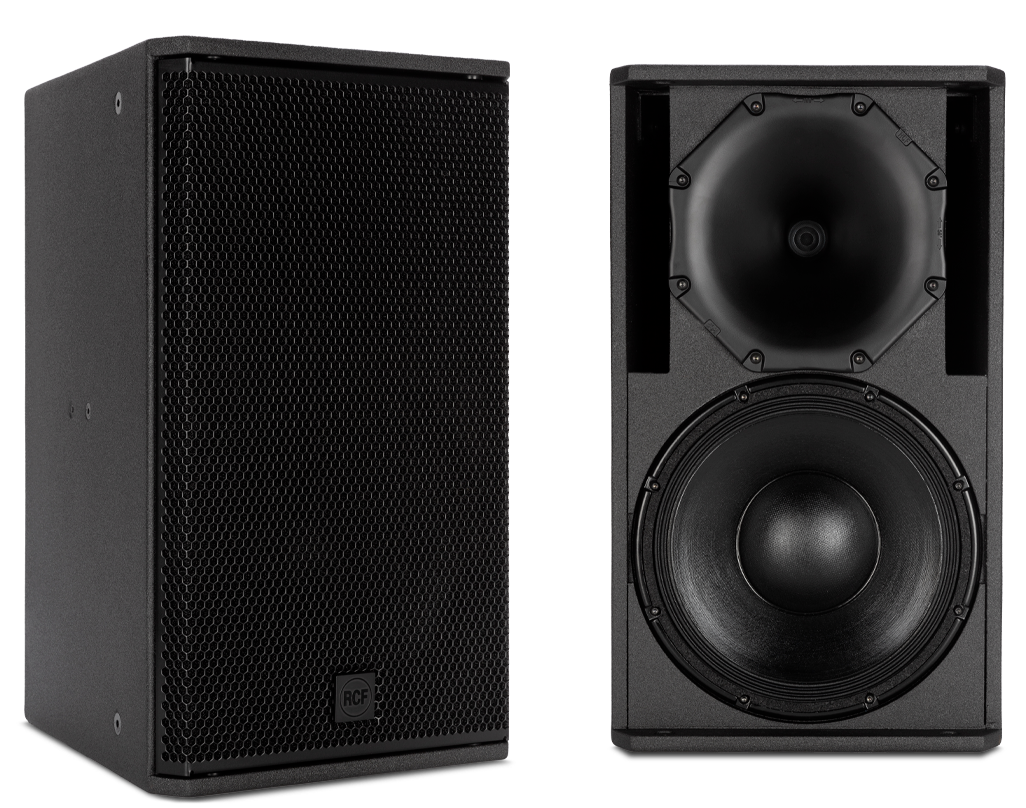

COMPACT C 32 WP is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 3" neodymium compression driver, a 12" neodymium woofer, and a constant directivity rotatable waveguide produces coherent 100° x 50° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special polyurea coating and a robust powder-coated grille with protective foam. Optional mounting accessories allow for wall or ceiling installation. Suitable for outdoor applications.

NEW
READ MORE

Part number:

13000911
COMPACT C 32 WP
EAN 8024530022822

Responsive Image

Big Sound, Compact Size

Elegant design aesthetics, RCF reliability and signature sound, delivering a pleasing audio experience in any application, from sports halls to nightclubs, corporate spaces, and performance venues. Available in two sizes, with 12-inch and 15-inch woofers, Compact C Series provides excellent acoustic performance for both background and foreground music. For enhanced weather resistance, the WP model features an acoustically transparent, water-repellent fabric discreetly embedded within the grille assembly and IP67 Amphenol Ecomate power connectors.

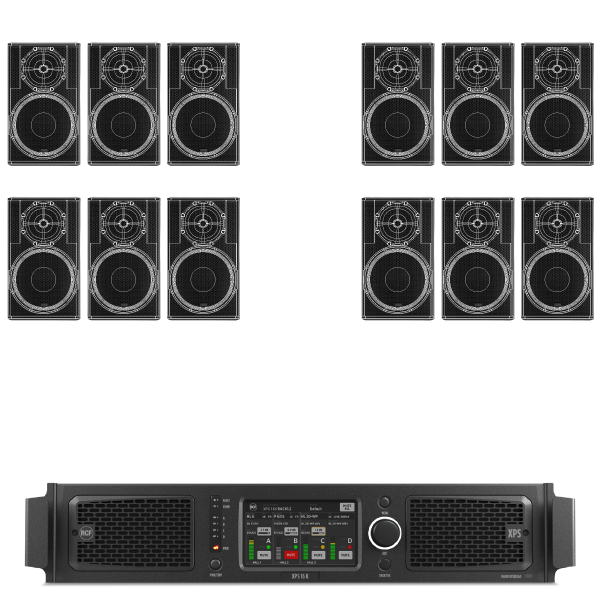

Recommended Power Amp

XPS SERIES

4 x 4000 W
Class D continuous power
at 2.7 Ohms
40-bit Floating-point
Processing at 96 kHz
Ready-to-Use
Configurations and presets
for RCF speakers
2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
Responsive Image
Full Range Two-Way Speakers
12 x 12" Speakers (COMPACT C 32)
Small to Medium Size Venues
Responsive Image

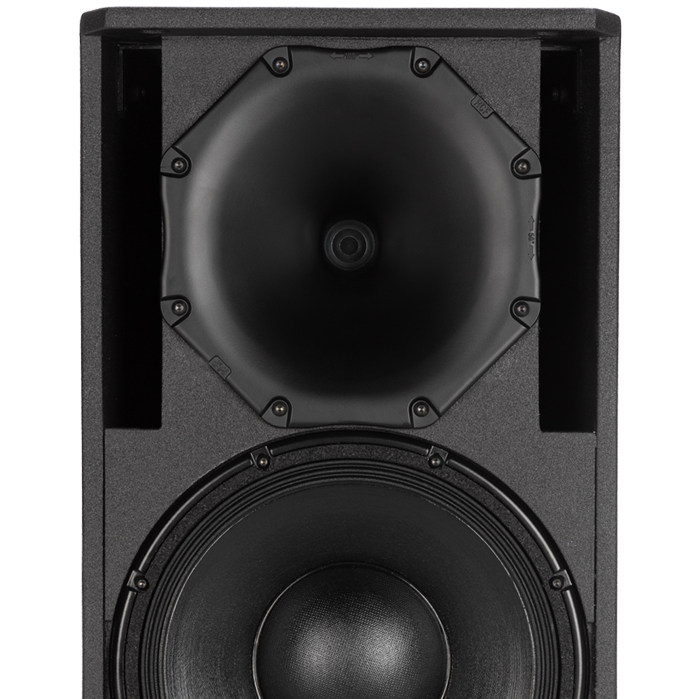

High Frequencies
The compression driver voice-coil design with titanium dome provides very natural sound with high power handling and the best durability over time. This allows lowering the usual crossover point for a perfect vocal performance at mid frequencies, also improving coupling with the low-frequency transducer.
Low Frequencies
Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels.
Responsive Image
Responsive Image

Constant Directivity Waveguide

The special waveguide design allows the deployment of COMPACT C speakers with accurate control of the directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.The speaker also features a 100° x 50° rotatable constant directivity waveguide. Using the optional  HN-KIT COMPACT C 32 C 45 accessory, it is possible to replace the speaker horn with two different horns and change directivity to 100° x 25° or 60° x 25°.

The Solution for Impressively Powerful Sound

COMPACT C flexibility makes it a smart choice for a wide range of applications. Combining high-quality birch plywood cabinets with a 100° x 50° rotatable constant directivity waveguide, the speaker can be installed either horizontally or vertically. The sleek cabinet features a robust polyurea coating and is easy to be flown-, wall-, or truss-mounted using the multiple rigging points available and optional accessories. The back panel provides two  ‘Neutrik Speakon NL4’ (4-pole) plugs or IP67 Amphenol Ecomate power connectors for the WP version.
Responsive Image

Compact C Series

Compact C Series is composed of two-way point source speakers for near and mid-distance high power applications. Each model combines a compact size with very high output for accurate speech and music reproduction. All cabinets are made with high-quality birch plywood, house a neodymium woofer with a titanium/neodymium compression driver, and a 100° x 50° rotatable constant directivity horn. Speakers can be installed either horizontally or vertically, with optional mounting accessories for walls or ceilings.
Specifications
Acoustical specifications
Frequency Response (-10dB)
54 Hz ÷ 20000 Hz
Max SPL @ 1m
137 dB
Horizontal coverage angle
100°
Vertical coverage angle
50°
Directivity index Q
10
System Sensitivity
97 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
600 W RMS
Peak Power Handling
2400 W PEAK
Protections
Dynamic Active Mosfet
Crossover Frequencies
1100 Hz
Recommended Amplifiers
XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504
Transducers
Compression Driver
1 x 1.4'' neo, 3.0'' v.c
Woofer
1 x 12'' neo, 3.5'' v.c
Input/Output section
Input connectors
Amphenol eco/mat IP 67
Output connectors
Amphenol eco/mat IP 67
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Birch plywood
Hardware
4 x M8, 14 x M10
Grille
Steel with waterproof clothing
Color
Black - RAL 9005
Size / Weight
Height
620 mm / 24.41 inches
Width
361.8 mm / 14.24 inches
Depth
404 mm / 15.91 inches
Weight
23.5 kg / 51.81 lbs
Shipping information
Package Height
665 mm / 26.18 inches
Package Width
442 mm / 17.4 inches
Package Depth
400 mm / 15.75 inches
Package Weight
25.5 kg / 56.22 lbs
Accessories
Downloads
MANUALS
USER MANUAL - ENG ITA
PDF
2 MB
17-04-2024
SPECIFICATIONS
SPECSHEET - DEU
PDF
1.3 MB
05-03-2025
SPECSHEET - ENG
PDF
1.3 MB
05-03-2025
SPECSHEET - ITA
PDF
1.3 MB
05-03-2025
SPECSHEET - SPA
PDF
1.3 MB
05-03-2025
ARCHITECTURAL SPECIFICATIONS - ENG
TXT
2 KB
05-03-2025
