Features
  • 300 W RMS power handling
  • 129 dB max SPL
  • 55 ÷ 20000 Hz frequency range
  • 90° x 70° constant directivity coverage angle
  • 1 x 12" high power woofer

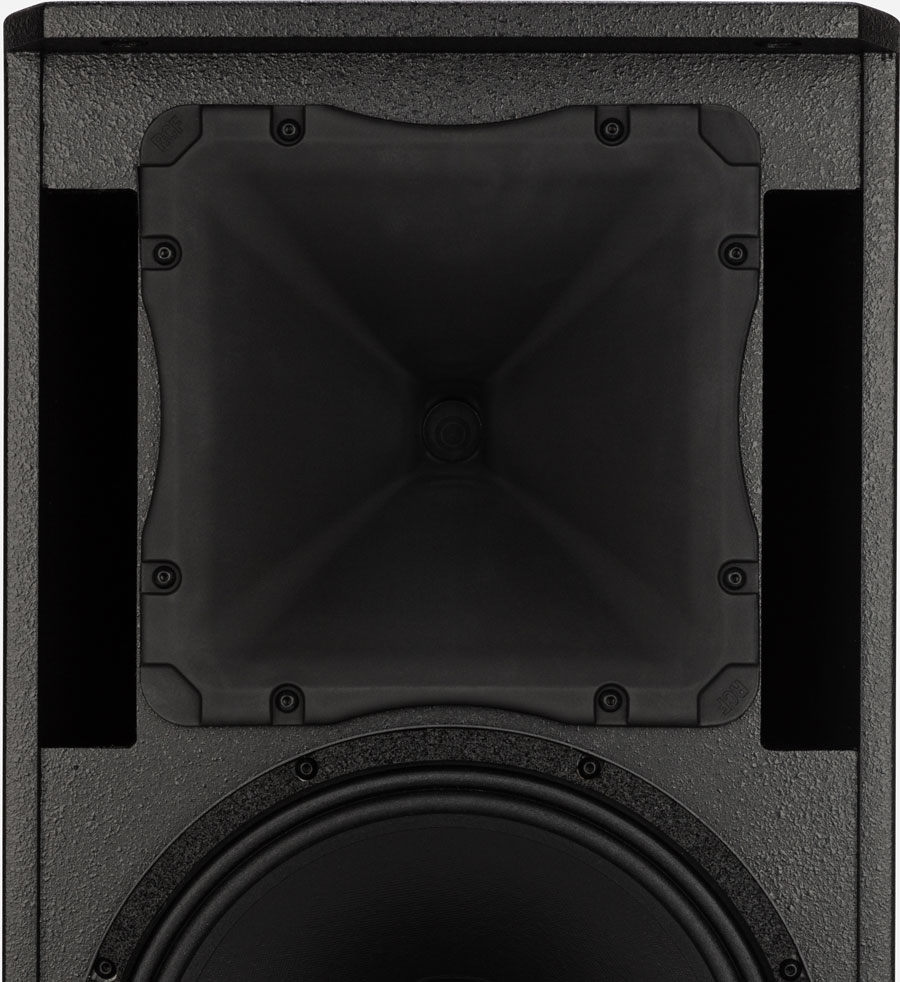

  • 1 x 1.4" voice coil compression driver
  • High quality plywood cabinet
  • Steel front grille with clothing

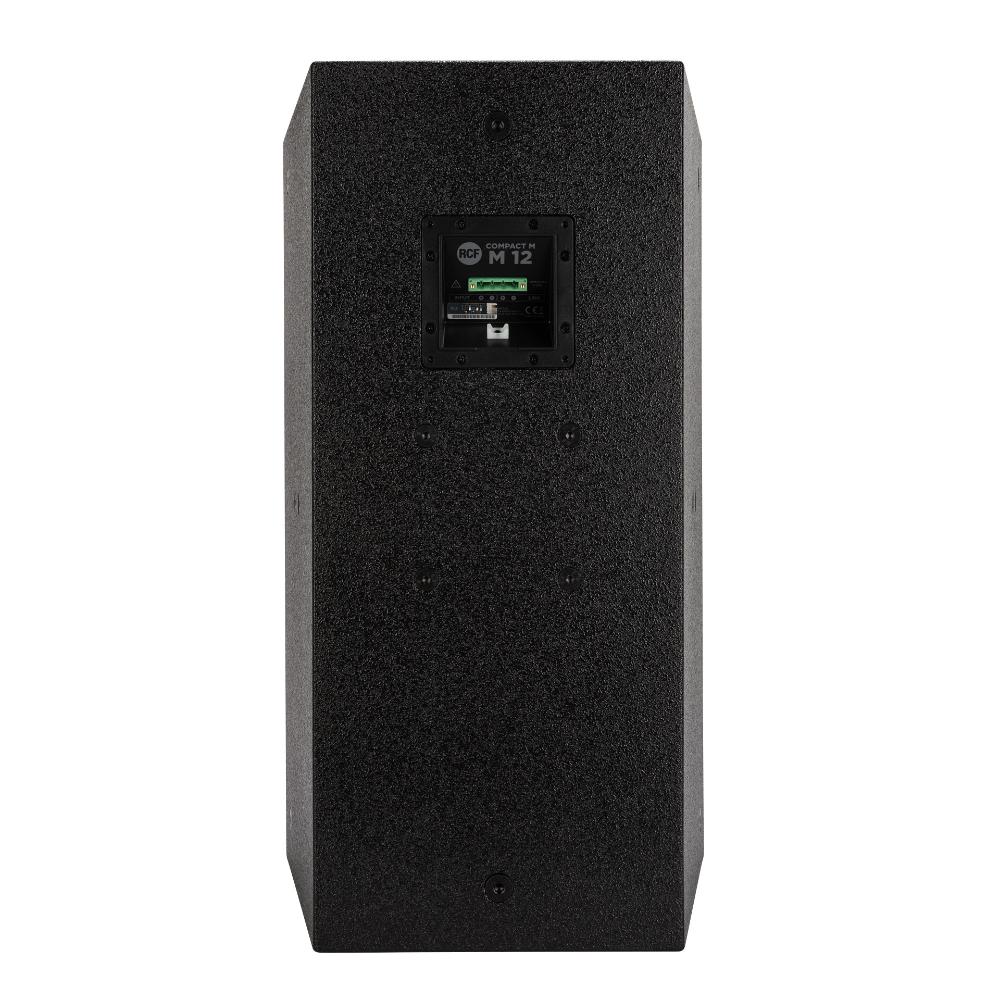

  • Installation points available on rear, top and bottom panels
  • 4 pole EUROBLOCK connector (audio input and parallel link output)

COMPACT M 12 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 12 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 12 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 12 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 12 on wall or ceiling installations.

Part number:

13000596
COMPACT M 12
Black - RAL 9005, EAN 8024530017811

13000724
COMPACT M 12 W
White - RAL 9003, EAN 8024530019365

Black & white

When in need of a particular appearance, matching the colour of interiors, or searching for a stylish, minimalistic sound system for your next DJ set, we can provide you with a full set of white speakers — a tough coating for wooden speakers or a robust white polypropylene composite material for portable systems, pole included, in perfect fashion. Purity and elegance, all available to be included in corporate gigs, weddings, and houses of worship.
Responsive Image

Multipurpose sound

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.
Responsive Image
Responsive Image

Engage your customers

Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience enjoying an immersive musical experience.

Improve the audio atmosphere

Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of RCF Compact M Series - optimal performance in both background music and high powered foreground audio.
Responsive Image
Responsive Image

Smooth installation

Compact M speakers sticks to the functionality and style of the Italian design, always in harmony with any type of interiors. With a complete range of solid wood cabinets, multiple rigging points and accessories, installation time is minimal. The EUROBLOCK connection panel can be replaced with female Neutrik SpeakON connection panel in seconds.
Specifications
Acoustical specifications
Frequency Response (-10dB)
55 Hz ÷ 20000 Hz
Max SPL @ 1m
129 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
Directivity index Q
9
System Sensitivity
98 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
300 W
Peak Power Handling
1200 W PEAK
Protections
Dynamic active mosfet
Crossover Frequencies
1800 Hz
Recommended Amplifiers
XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504
Transducers
Compression Driver
1 x 1.0'', 1.4'' v.c
Woofer
1 x 12'', 2.5'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plywood
Hardware
8 x M8, 8 x M10
Grille
Steel with clothing
Color
Black - RAL 9005, White - RAL 9003
Size
Height
620 mm / 24.41 inches
Width
362 mm / 14.25 inches
Depth
404 mm / 15.91 inches
Weight
22 kg / 48.5 lbs
Shipping information
Package Height
655 mm / 25.79 inches
Package Width
442 mm / 17.4 inches
Package Depth
400 mm / 15.75 inches
Package Weight
25.5 kg / 56.22 lbs
