DM 41
TWO-WAY COMPACT SPEAKER
- 3.5" woofer with 1'' dome tweeter
- Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
- 87 dB sensitivity
- Colour white RAL 9002 and black RAL 9005
IP55


























Features
- 3.5" woofer with 1'' dome tweeter
- Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
- 87 dB sensitivity
- Colour white RAL 9002 and black RAL 9005
- Plastic body UL 94 V0, steel grille
- Protection grade IP 55

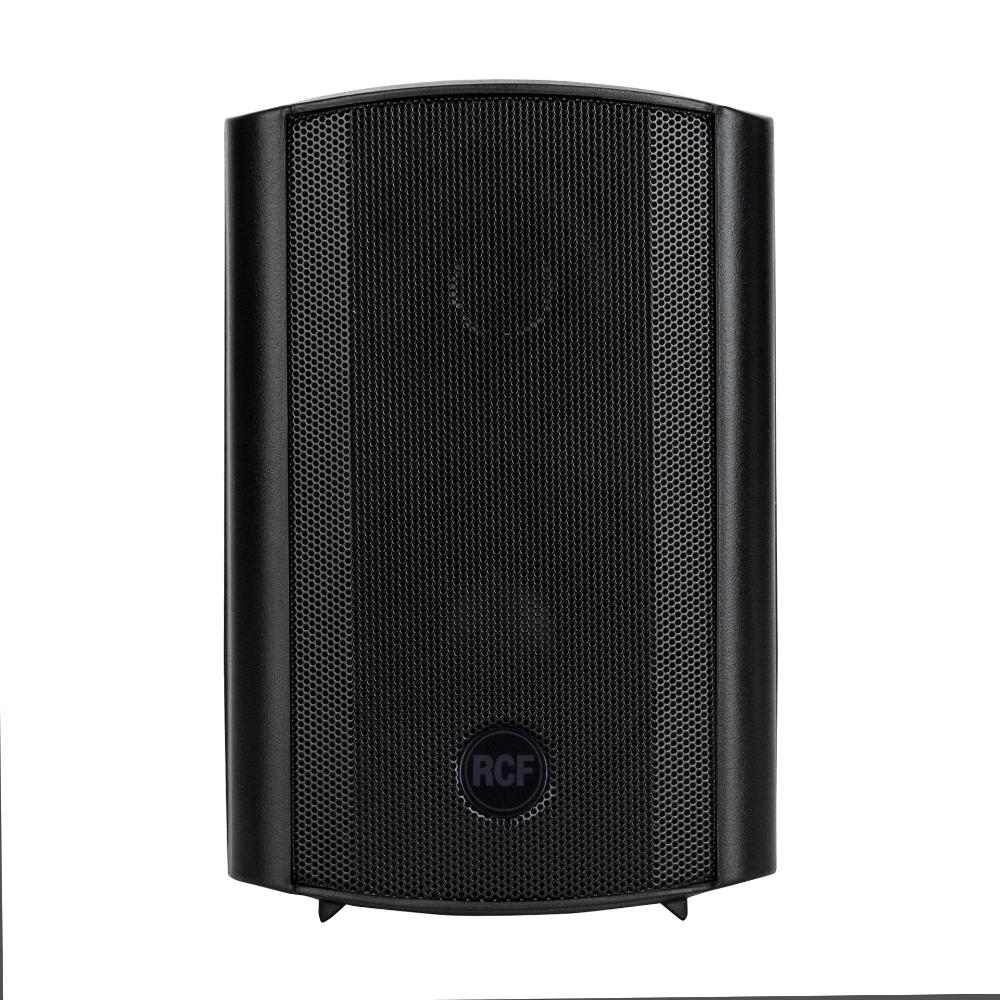

DM 41 is a compact two way speaker designed for constant voltage systems. The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.
Part number:
13000049
DM 41
White - RAL 9002, EAN 8024530004941
13000387
DM 41 B
Black - RAL 9005, EAN 8024530010348
Specifications
Acoustical specifications
Frequency Response (-10dB)
100 Hz ÷ 20000 Hz
Max SPL @ 1m
102 dB
Horizontal coverage angle
180°
Vertical coverage angle
170°
System Sensitivity
87 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
15 W
Peak Power Handling
60 W PEAK
Crossover Frequencies
2.5 Hz
Transducers
Dome Tweeter
1 x 1.0''
Woofer
1 x 3.5''
Input/Output section
Input connectors
Cable
Output connectors
Cable
Constant Voltage Transformer
100 V
Power selection 1
15 W - 667 ohm
Power selection 2
7.5 W - 1333 ohm
Power selection 3
5 W - 2000 ohm
Power selection 4
2.5 W - 4000 ohm
Power selection 5
1.25 W - 8000 ohm
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Aluminium U bracket
Grille
Aluminium
Color
White - RAL 9002, Black - RAL 9005
Size / Weight
Height
197 mm / 7.76 inches
Width
130 mm / 5.12 inches
Depth
115 mm / 4.53 inches
Weight
1.7 kg / 3.75 lbs
Shipping information
Package Height
260 mm / 10.24 inches
Package Width
180 mm / 7.09 inches
Package Depth
175 mm / 6.89 inches
Package Weight
1.96 kg / 4.32 lbs
