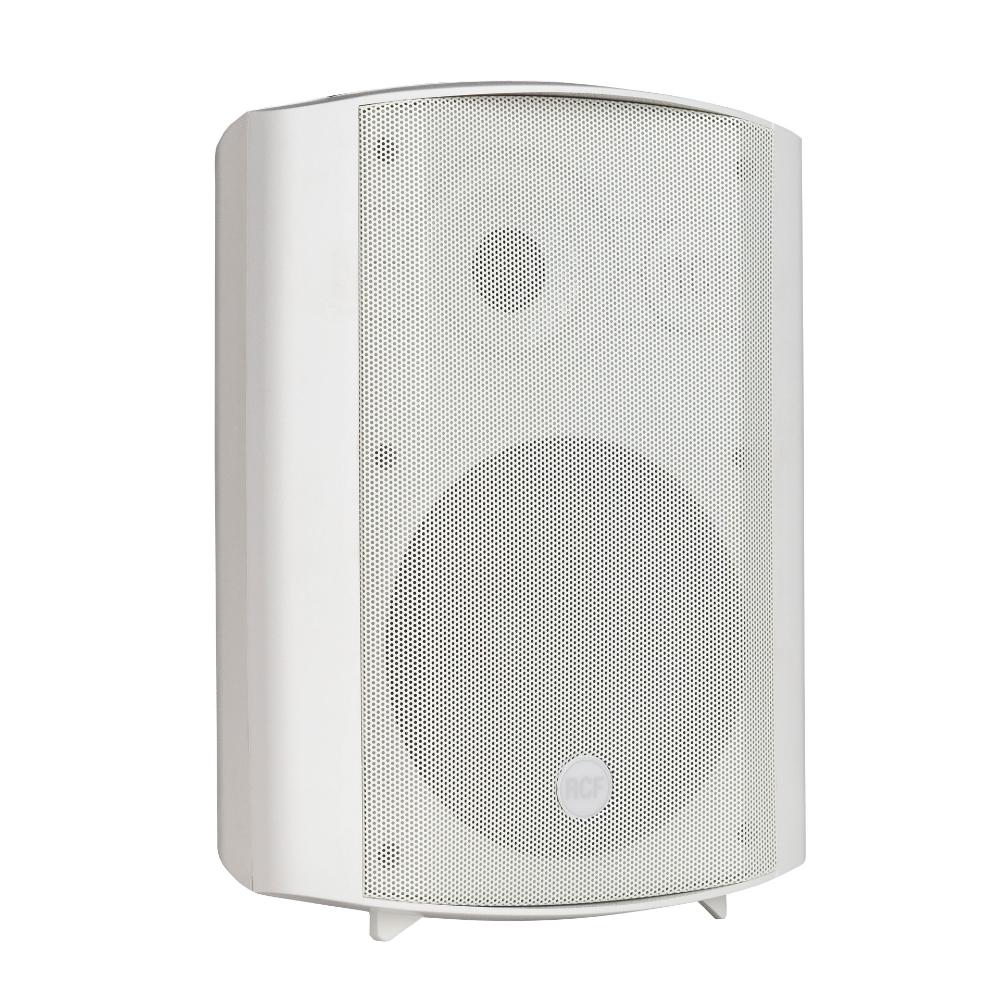

COMMERCIAL AUDIO BUSINESS MUSIC

DM 61

TWO-WAY COMPACT SPEAKER
  • 6" woofer with 1'' dome tweeter
  • Power selectable (100 V): 25 W – 12.5 W – 7.5 W – 5 W – 2.5 W
  • 89 dB sensitivity
  • Colour white RAL 9002
IP55
Where to buy
Features Specifications Related products Downloads
Where to buy
Features
  • 6" woofer with 1'' dome tweeter
  • Power selectable (100 V): 25 W – 12.5 W – 7.5 W – 5 W – 2.5 W
  • 89 dB sensitivity
  • Colour white RAL 9002
  • Plastic body UL 94 V0, steel grille
  • Protection grade IP 55

DM 61 is a compact two way speaker designed for constant voltage systems. The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music apllications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.

Part number:

13000050
DM 61
EAN 8024530004958

Specifications
Acoustical specifications
Frequency Response (-10dB)
70 Hz ÷ 20000 Hz
Max SPL @ 1m
106 dB
Horizontal coverage angle
120°
Vertical coverage angle
140°
System Sensitivity
89 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
25 W
Peak Power Handling
100 W PEAK
Crossover Frequencies
6000 Hz
Recommended Amplifiers
DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8502, UP 8501, UP 2321, UP 2162
Transducers
Dome Tweeter
1 x 1.0''
Woofer
1 x 6.0''
Input/Output section
Input connectors
Cable
Output connectors
Cable
Constant Voltage Transformer
100 V
Power selection 1
25 W - 400 ohm
Power selection 2
12.5 W - 800 ohm
Power selection 3
7.5 W - 1333 ohm
Power selection 4
5 W - 2000 ohm
Power selection 5
2.5 W - 4000 ohm
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Aluminium U bracket
Grille
Aluminium
Color
White - RAL 9002
Size / Weight
Height
289 mm / 11.38 inches
Width
216 mm / 8.5 inches
Depth
177 mm / 6.97 inches
Weight
3.98 kg / 8.77 lbs
Shipping information
Package Height
340 mm / 13.39 inches
Package Width
265 mm / 10.43 inches
Package Depth
250 mm / 9.84 inches
Package Weight
4.5 kg / 9.92 lbs
