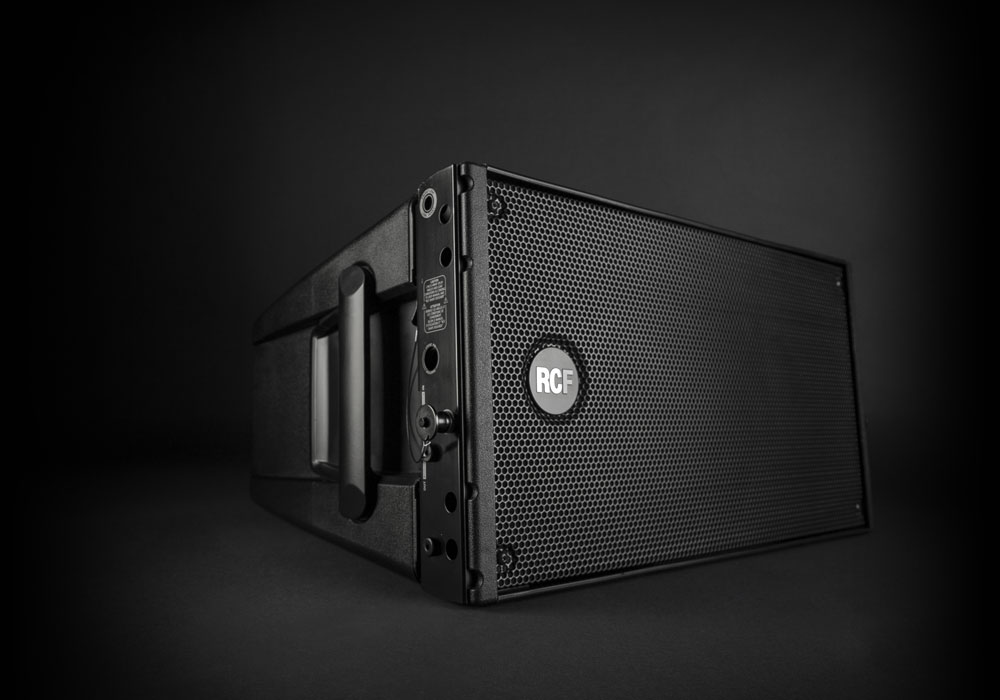

TOURING

HDL 10-A

ACTIVE LINE ARRAY MODULE

1400 Watt Peak power - 700 Watt RMS
2 x 8" Woofers
133 dB max SPL
65 Hz 20 kHz frequency response

Where to buy

Features

1400 Watt Peak power - 700 Watt RMS
133 dB max SPL
65 Hz 20 kHz frequency response
2 x 8" Woofers
1 x 2" Compression Driver

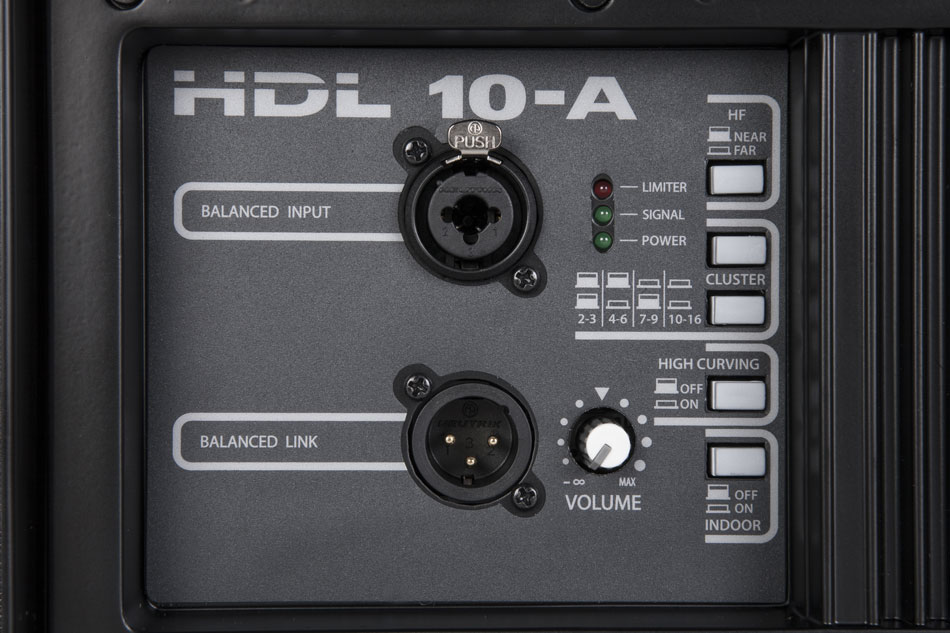

DSP controlled Input section with selectable presets
Tour grade safe and solid variable mechanics
Composite PP enclosure structurally wooden reinforced

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

Quick lock PIN Table

Easy Shape Designer

Part number:

13040016
HDL 10-A
220-240V, Black, EAN 8024530010843

13040017
HDL 10-A
115V, Black, EAN 8024530010850

13040022
HDL 10-A W
220-240V, White, EAN 8024530012113

13040023
HDL 10-A W
115V, White, EAN 8024530012403

Tour sound in a compact size

The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency Class-D amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.

RCF precision transducers

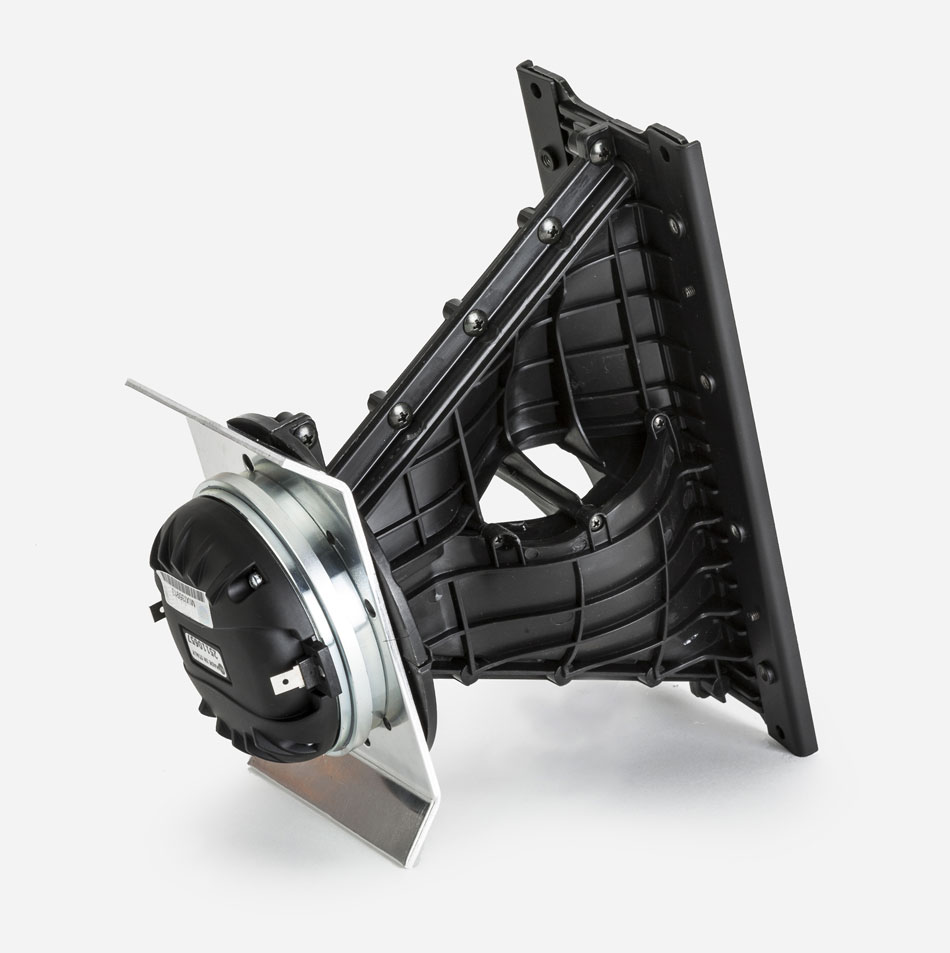

High frequencies - The ND640 large format compression driver delivers one of the key advantages of the HDL 10-A, the 2.5” voice coil allows a crossover point of 800Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.

Low frequencies - High power woofers. Very high efficient and controlled bass reproduction.

2 X 8" Woofers, 2.0" Inside-Outside voice coil
Water resistant fibre doped cone
Polycotton M-roll surround
High power magnetic structure

Powerful class D amplifiers

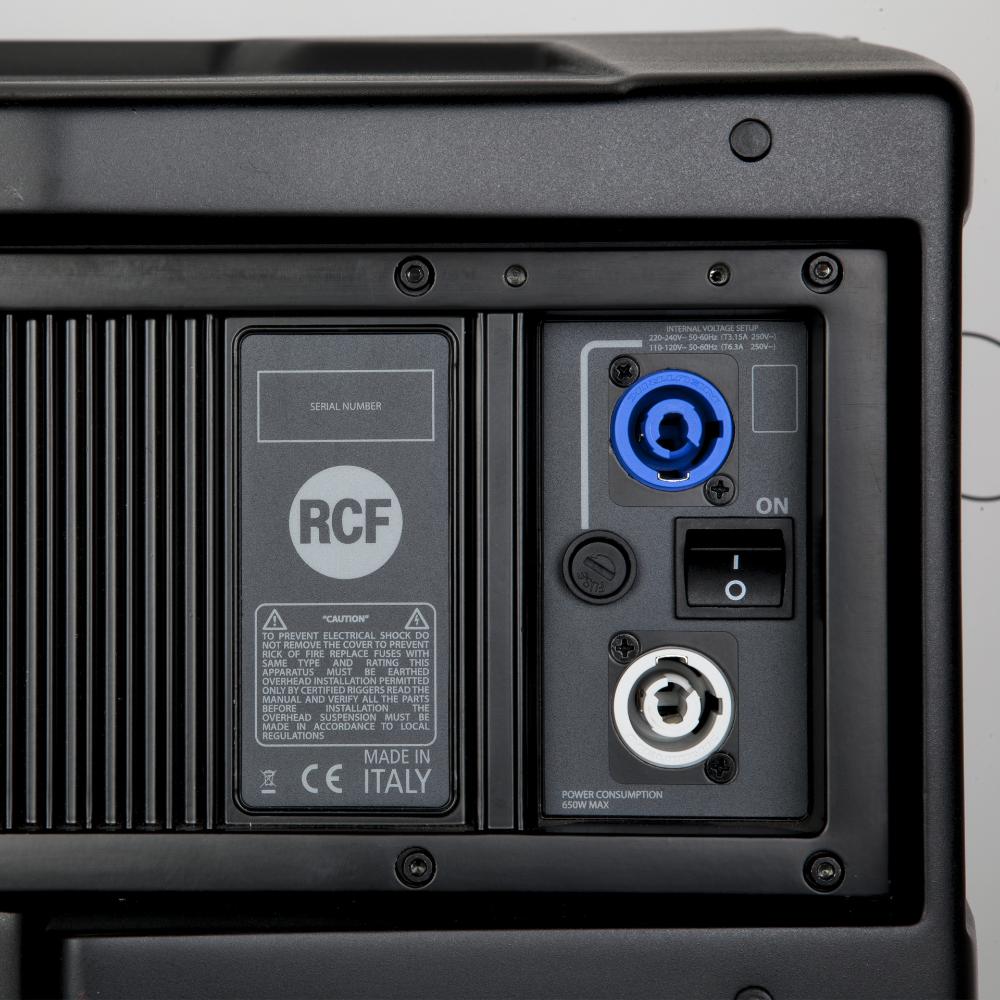

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
