Features
  • 135 dB Max SPL
  • 3200W Class-D Amplifier
  • 40-140 Hz frequency response
  • RDNet Networked Management
  • 15” Neodymium Woofer, 4.0” voice coil

The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system. It features one 4.0” voice coil, 15” neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with the maximum linearity and low distortion. The built-in 3200 watts class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 36-AS is part of the professional HDL System.

Part number:

13000583
HDL 36-AS
Black, EAN 8024530017132

13000662
HDL 36-AS W
White - RAL 9003, EAN 8024530018092

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

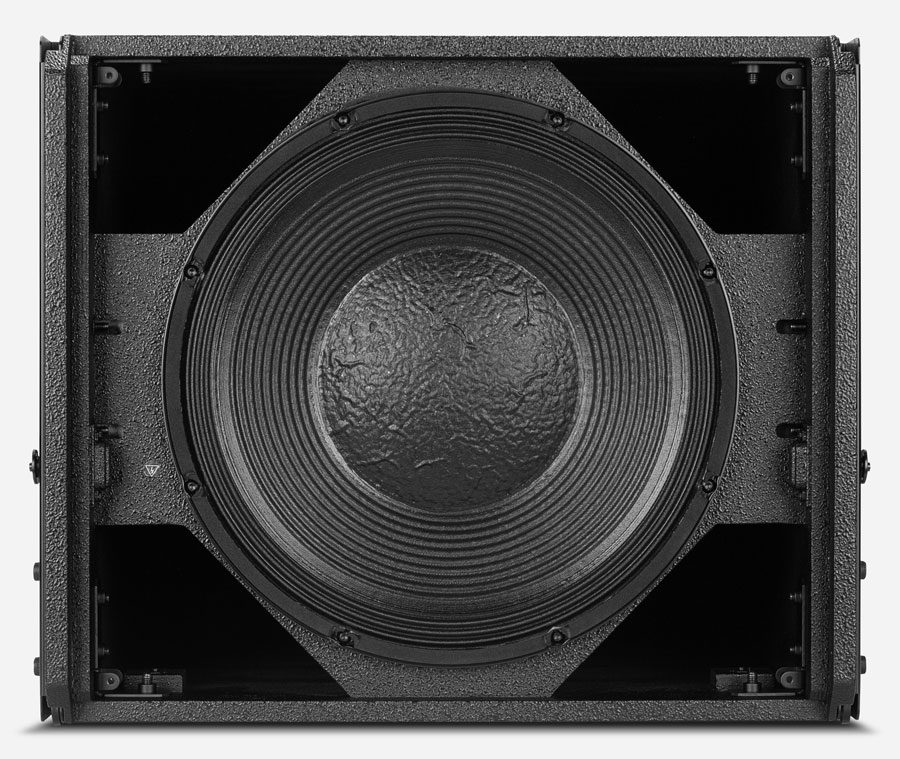

Legendary woofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, RDNet remote control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.
Responsive Image
Responsive Image

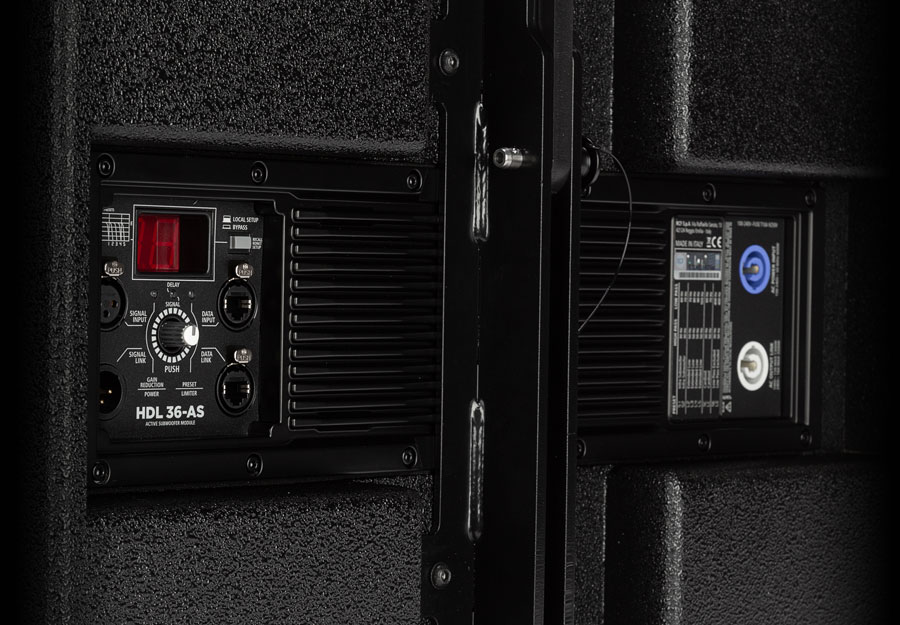

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Cabinet and mechanics

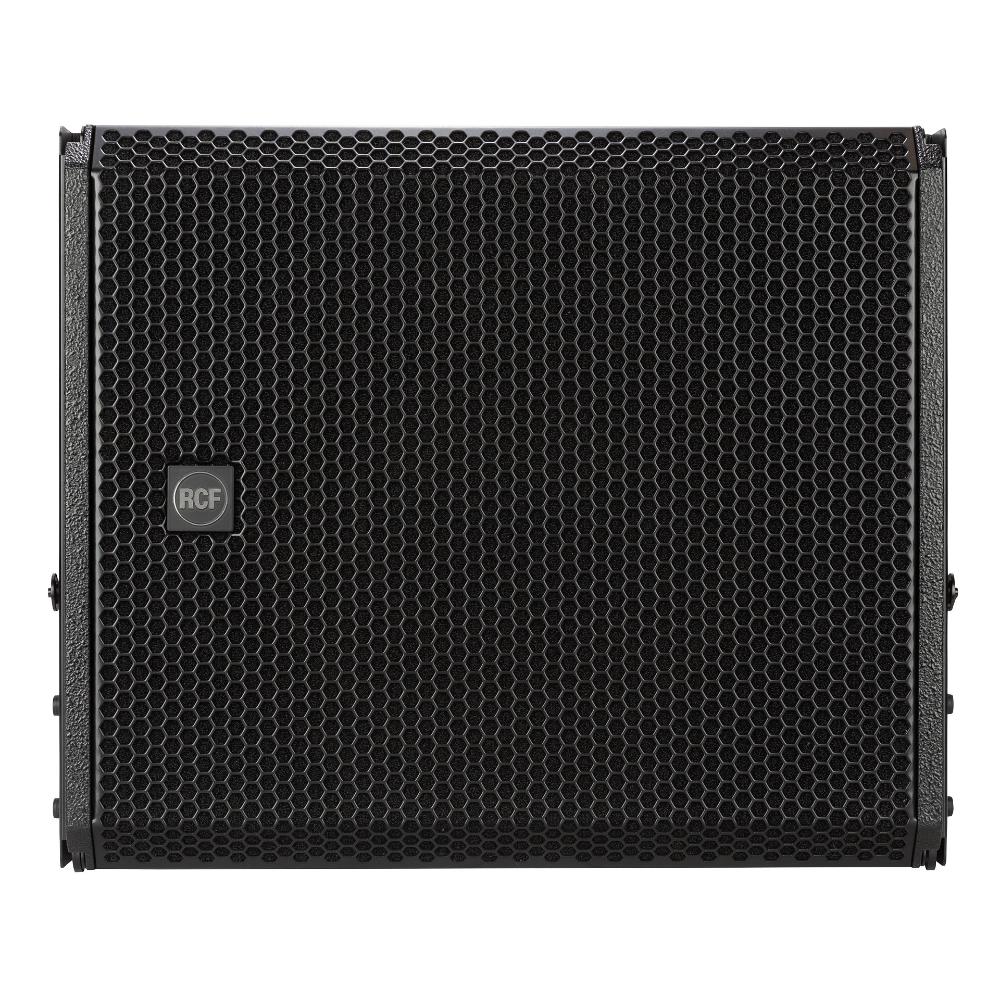

The hardware is designed for an easy and fast setup, completely compatible with the HDL 28-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.
Responsive Image

Subwoofer alignment tutorials

Specifications
Acoustical specifications
Frequency Response
40 Hz ÷ 140 Hz
Max SPL @ 1m
135 dB
Transducers
Woofer
1 x 15'' neo, 4.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
+4 dBu
Processor section
Protections
Thermal, RMS
Limiter
Soft Limiter

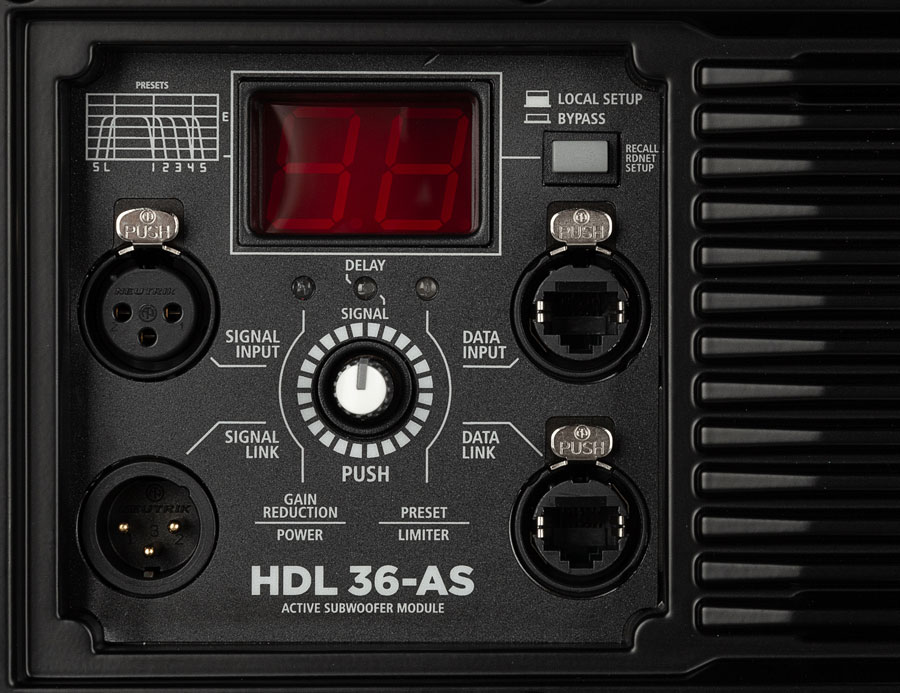

Controls
Volume, Preset selection, RDnet on board
RDNet
Yes
Power section
Total Power
3200 W Peak, 1600 W RMS
Low frequencies
3200 W Peak, 1600 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Array fittings
1 X M20
Handles
2 Side
Grille
Steel
Color
Black, White - RAL 9003
Size
Height
467 mm / 18.39 inches
Width
555 mm / 21.85 inches
Depth
593 mm / 23.35 inches
Weight
37 kg / 81.57 lbs
Shipping information
Package Height
500 mm / 19.69 inches
Package Width
570 mm / 22.44 inches
Package Depth
610 mm / 24.02 inches
Package Weight
40 kg / 88.18 lbs
