Features
  • 3.5" fullrange transducer
  • Power selectable (100 V): 8 W – 6 W – 4 W – 2 W
  • 88 dB sensitivity
  • Colour white RAL 9003
  • Plastic frame UL 94 V0, aluminium grille

PL 40 is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 3.5” fullrange transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Part number:

13133045
PL 40
EAN 8024530004989

Specifications
Acoustical specifications
Frequency Response (-10dB)
90 Hz ÷ 20000 Hz
Max SPL @ 1m
100 dB
Coverage angle
120°
System Sensitivity
88 dB
Power section
Amplification
Full Range
Power Handling
8 W RMS
Peak Power Handling
32 W PEAK
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
Transducers
Fullrange
1 x 3.5''
Input/Output section
Input connectors
Screw Terminals
Output connectors
Screw Terminals

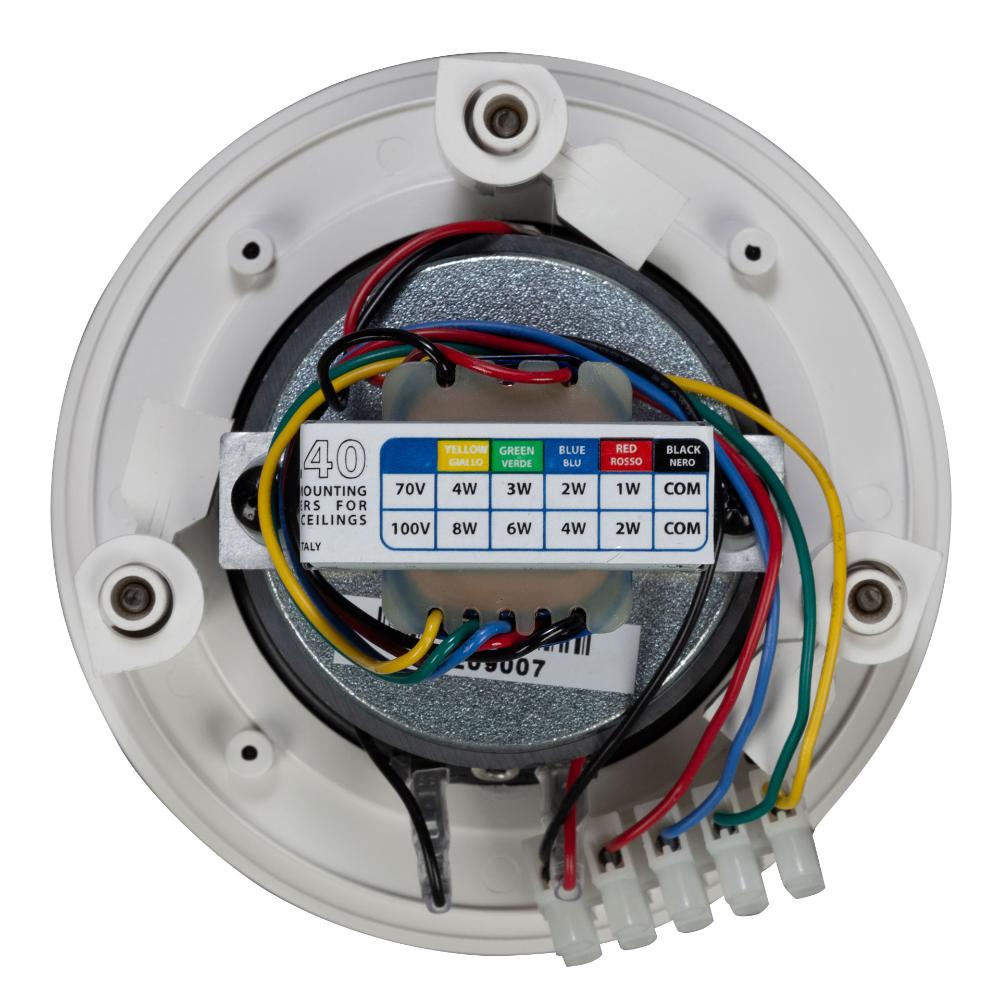

Constant Voltage Transformer
100 V
Power selection 1
8 W - 1250 ohm
Power selection 2
6 W - 1667 ohm
Power selection 3
4 W - 2500 ohm
Power selection 4
2 W - 5000 ohm
Standard compliance
IP protection grade
IP 44
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Plastic Material
Grille
Aluminium
Color
White - RAL 9003
Size
Depth
110 mm / 4.33 inches
Recessed Depth
103 mm / 4.06 inches
Diameter
130 mm / 5.12 inches
Cut out diameter
122 mm / 4.8 inches
Weight
0.38 kg / 0.84 lbs
Shipping information
Package Height
120 mm / 4.72 inches
Package Width
175 mm / 6.89 inches
Package Depth
175 mm / 6.89 inches
Package Weight
1.2 kg / 2.65 lbs
