Features
  • 400 W RMS power handling
  • 124 dB max SPL
  • 50 ÷ 200 Hz frequency range
  • 1 x 10" high power woofer
  • High quality plywood cabinet
  • Steel front grille with clothing
  • M20 standard pole mount in top section of cabinet
  • 4 pole EUROBLOCK connector (audio input and parallel link output)

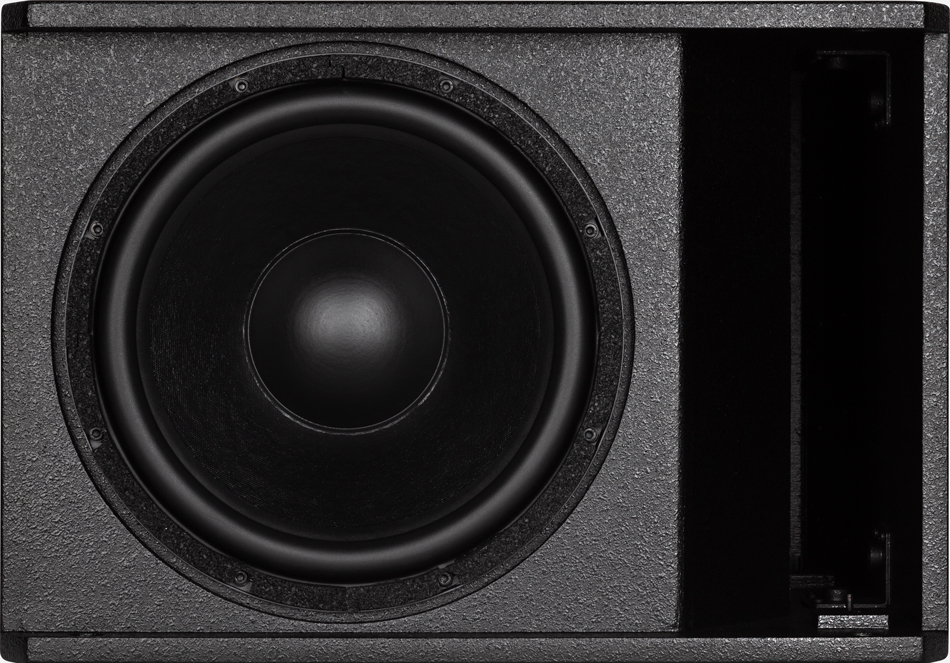

S 10 is a high power, compact subwoofer system ideal for those installations where the physically small size and impact of a 10'' driver are desired. Extending the frequency response of these systems to below 50Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducer is a 10” woofer with a 2,5” voice coil. Woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range.

Part number:

13000617
S 10
EAN 8024530018337

Powerful lows

RCF subwoofers are the first choice of many sound engineers, due to their very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, and impressive size/weight to SPL output ratio. Your audience will enjoy an engaging immersive musical experience.
Responsive Image
Responsive Image

State of the art transducers

The low-frequency transducers are a 10'', 12” and a 15'' high-power woofers, both with a 2.5'' voice coil. Their design is the result of the latest refinements in compact subwoofers production, resulting in a fast and controlled reproduction of the bass frequency range.

Multipurpose sound

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.
Responsive Image
Responsive Image

Improve the audio atmosphere

Music helps engagement and will improve the hospitality of your activity, especially if the perceived sound quality is higher. This is the aim of RCF SUB S Series - optimal performance in both background music and high-powered foreground audio.
Specifications
Acoustical specifications
Frequency Response (-10dB)
45 Hz ÷ 200 Hz
Max SPL @ 1m
124 dB
System Sensitivity
92 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
400 W RMS
Peak Power Handling
1600 W PEAK
Recommended Amplifiers
DMA 162, DMA 162P, DMA 504, IPS 1.5K, IPS 2.5K, QPS 6.0K
Transducers
Woofer
1 x 10'', 2.5'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plywood
Hardware
12 x M10
Pole mount/Cap
Yes
Grille
Steel with clothing
Color
Black
Size
Height
318 mm / 12.52 inches
Width
450 mm / 17.72 inches
Depth
360 mm / 14.17 inches
Weight
19.6 kg / 43.21 lbs
Shipping information
Package Height
368 mm / 14.49 inches
Package Width
405 mm / 15.94 inches
Package Depth
495 mm / 19.49 inches
Package Weight
22.2 kg / 48.94 lbs
Accessories
Downloads
MANUALS
PDF
704 KB
23-07-2020
SPECIFICATIONS
PDF
1 MB
20-08-2024
PDF
1 MB
20-08-2024
PDF
1 MB
20-08-2024
PDF
1 MB
20-08-2024
PDF
1 MB
20-08-2024
PDF
86 KB
11-07-2024
STANDARD COMPLIANCES
PDF
51 KB
12-02-2024
DRAWINGS
DXF
1.8 MB
22-01-2024
PDF
229 KB
22-01-2024
SOFTWARE
GLL
ZIP
80 KB
11-05-2021
