Features
  • Up to 3000 W power handling
  • 143 dB max SPL
  • 25 ÷ 200 Hz frequency range
  • 2x19" HyperVented Neodymium Woofer with 4’’ v.c.
  • High-quality polyurea-coated multi-ply cabinet
  • Steel front grille with clothing
  • M20 standard pole mount in top section of cabinet
  • Speakon NL4 connectors

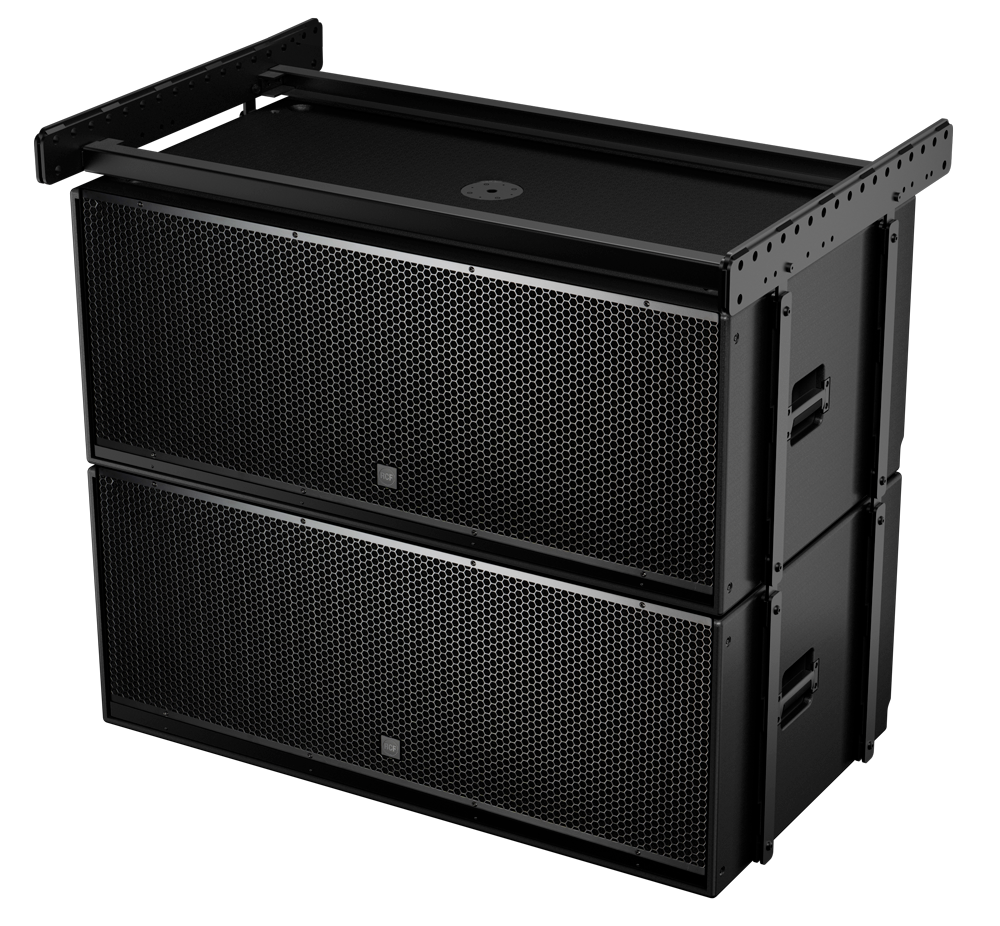

S 29 is a high-power double 19" subwoofer suitable for RCF Installed Sound systems. The bass-reflex design ensures an efficient acoustic response down to 25 Hz. The high-quality plywood cabinet is finished with a black, heavy-duty polyurea coating and protected by a powder-coated metal grille. The recessed input panel features two Speakon NL4 connectors, allowing a quick and safe connection. A M20 pole mount adaptor on top and handles on both sides are provided. Both models can be ground-stacked and are cardioid-arrayable for improved rear rejection.


NEW

Part number:

13100097
S 29
EAN 8024530021757

Recommended Power Amp

XPS SERIES

4 x 4000 W
Class D continuous power
at 2.7 Ohms
40-bit Floating-point
Processing at 96 kHz
Ready-to-Use
Configurations and presets
for RCF speakers
2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
Responsive Image
Responsive Image

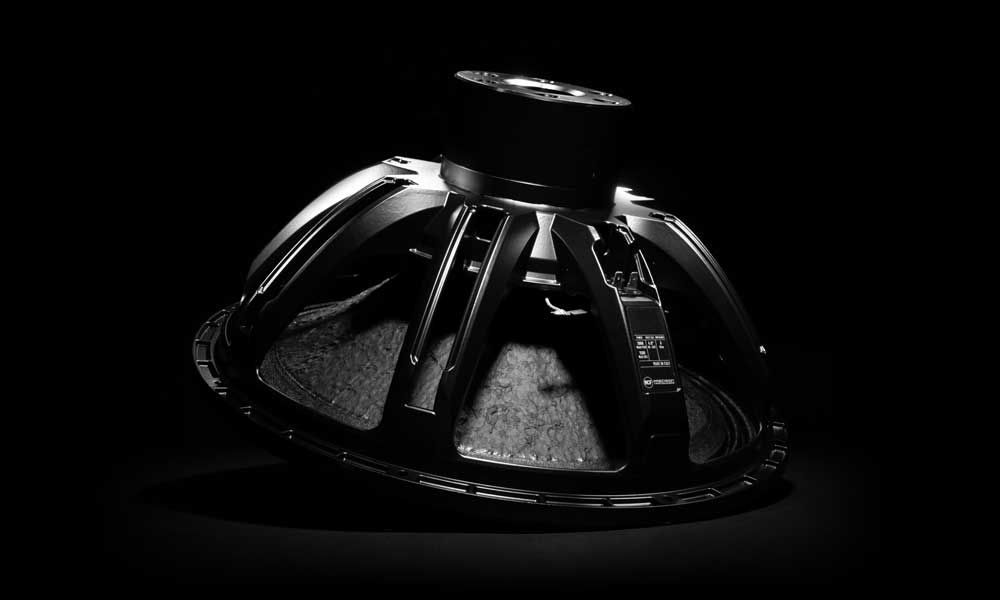

Advanced Transducer Technology

S Series subwoofers incorporate the latest transducer technology from our labs. The 19-inch cone size is the ideal balance between the traditional high-speed 18” and the slower 21” and inherits the best characteristics of the two sizes. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass (65mm/2.5" safe peak-to-peak) gains high power with fast acceleration. Despite their small and lightweight footprints, S 29 and S 19 produce powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.

Polyurea Coating

S Series enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection. The coating also withstands abrasion, impacts, mechanical stress, and its high elasticity maintains flexibility even in low temperatures. It also exhibits strong chemical resistance and does not emit any VOCs (volatile organic compounds), making it environmentally friendly and safe for human health.
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB)
25 Hz ÷ 200 Hz
Max SPL @ 1m
143 dB
Power section
Amplification
Full Range
Nominal Impedance
4 ohm
Power Handling
3000 W
Peak Power Handling
12000 W PEAK
Transducers
Woofer
2 x 19'' neo, 4.0'' v.c
Input/Output section
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plywood
Handles
2 side
Pole mount/Cap
Yes
Grille
Steel with clothing
Size
Height
534 mm / 21.02 inches
Width
1300 mm / 51.18 inches
Depth
730 mm / 28.74 inches
Weight
85 kg / 187.39 lbs
Shipping information
Package Height
620 mm / 24.41 inches
Package Width
1360 mm / 53.54 inches
Package Depth
800 mm / 31.5 inches
Package Weight
90 kg / 198.42 lbs
