PRO SOUND

SUB 8006-AS

ACTIVE HIGH POWER SUBWOOFER

141 dB max SPL
5000 Watt Peak power - 2500 Watt RMS
30 Hz - 120 Hz frequency response
2 x 18" Woofer

Where to buy

Features

5000 Watt Peak power - 2500 Watt RMS
141 dB max SPL
30 Hz - 120 Hz frequency response
2 x 18" Woofer
DSP controlled Input section with selectable presets
Delay control
Integrated mechanics for multiple configuration with HDL 20-A
Baltic birch tour grade cabinet

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

Part number:

13000372
SUB 8006-AS
220-240V, EAN 8024530009854

13000373
SUB 8006-AS
115V, EAN 8024530009861

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.

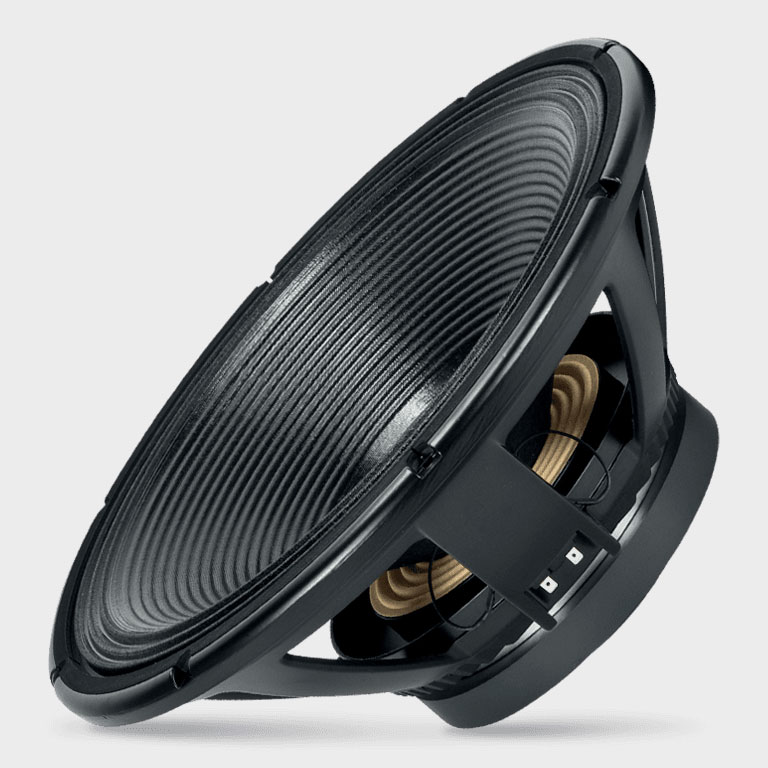

The transducers innovators

RCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids. With over 70 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming. Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground breaking direct drive voice coil assemblies.

Legendary subwoofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

Cabinet & mechanics

The RCF cabinets are made of baltic birch plywood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.
