Features
  • 3400 W digital amplifiers
  • 2 x 15" high power neodymium woofers
  • 96 kHz, 32 bit DSP processing
  • Remote monitoring and control
  • Time delay alignment
  • Cardioid preset for groups
  • Tour grade cabinet
  • Maximum output per size on market
  • RDNet on board

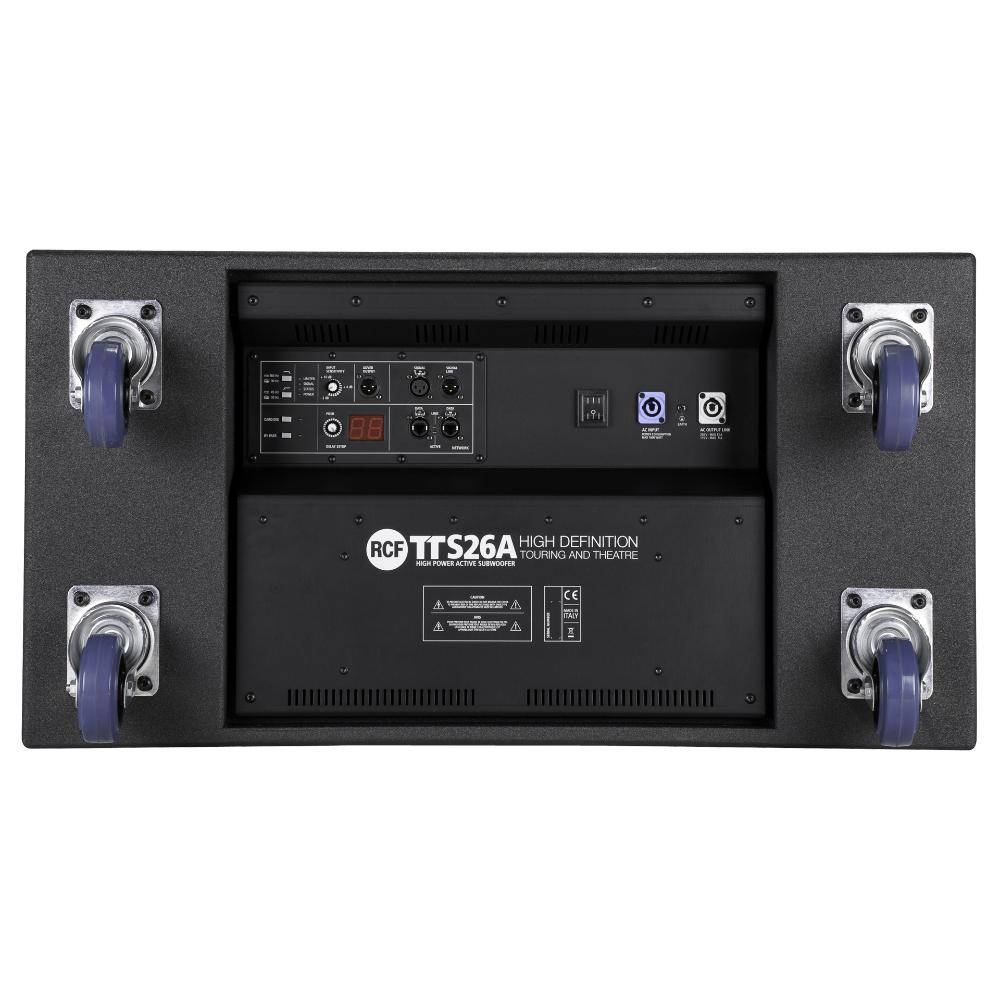

The TTS26-A is a very compact powerful subwoofer designed for a variety of professional fixed or portable sound applications. It is the perfect complement the TTL11A column array system. Two high power 15” neodymium woofers powered by a 3400 W digital amplifier deliver a perfect and bass punch for live music applications.


ARCHIVED

Part number:

13000241
TTS 26-A
90-240V, EAN 8024530008901

Specifications
Acoustical specifications
Frequency Response
35 Hz ÷ 120 Hz
Max SPL @ 1m
140 dB
Transducers
Woofer
2 x 15'' neo, 4.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
-2 dBu/+10 dBu
Processor section
Hi-Pass Frequencies
120 Hz
Low-Pass Frequencies
90 Hz
Protections
Thermal, Excurs., RMS
Limiter
Soft Limiter
Controls
DSP Controlled
RDNet
Yes
Power section
Total Power
6800 W Peak, 3400 W RMS
Low frequencies
6800 W Peak, 3400 W RMS
Cooling
Convection/Forced
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
TTL11A Ready
Handles
4 side
Grille
Steel
Color
Black
Size
Height
460 mm / 18.11 inches
Width
900 mm / 35.43 inches
Depth
700 mm / 27.56 inches
Weight
72.5 kg / 159.83 lbs
Shipping information
Package Height
460 mm / 18.11 inches
Package Width
900 mm / 35.43 inches
Package Depth
700 mm / 27.56 inches
Package Weight
80.5 kg / 177.47 lbs
