SUB AX SERIES

Advanced Subwoofers with Crossover Presets for RCF Speakers

Responsive Image

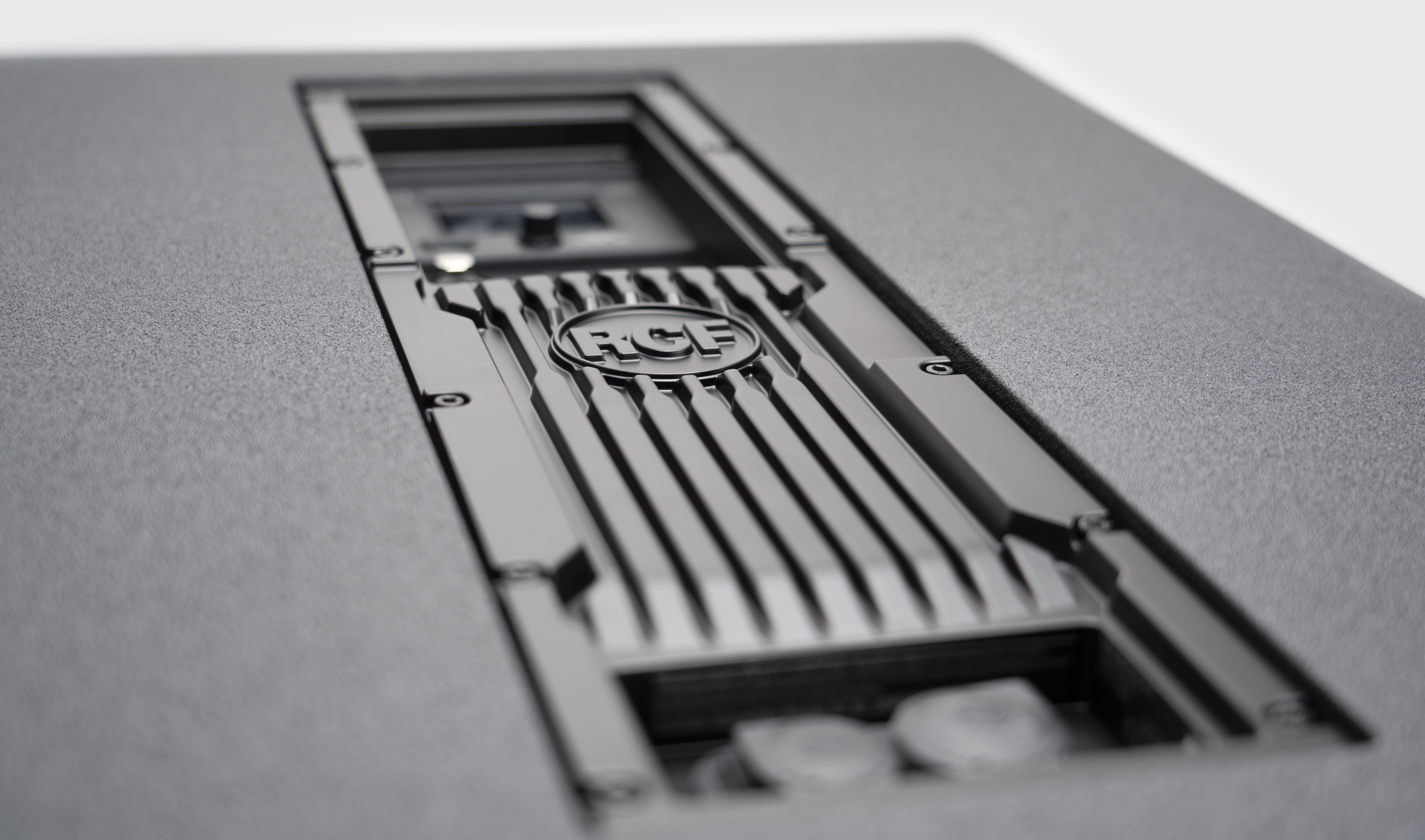

SUB AX centralizes speaker management and features pro-level internal controls for system tuning and optimization. AX subwoofers inherit the powerful DSP introduced with ART AX speakers to continue with RCF’s modern approach to sound system control.
Mono or Dual Connections
Combo TRS/XLR Inputs,
XLR Link and Crossover Outputs
2200 W
Class-D
Amplifier
RCF
High Power High-Excursion
Premium Transducers
Built-in
Color Touch Panel and
Bluetooth® Remote Control
Bass Motion Control
Proprietary Algorithms
Transducer Excursion Management
Advanced DSP
Internal 8-band EQ
System Delay
Road-proof Cabinet
with Polyurea Coating
and powerCON® TRUE1 TOP

Crossover Presets

Factory-Tuned Presets for RCF Speakers and 4 User-Editable Presets

Responsive Image

Unlock Your System's True Potential

The key to optimizing your sound system is the precise adjustment of your subwoofer's time alignment. This not only elevates sound quality but also enhances bass response, giving your audience both the beat they can hear and the vibe they can feel.

With internal factory-tuned crossover presets for RCF speakers, your sound system is show-ready in a few easy steps. Simply connect your satellite speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

Large Touch Display

2.4-inch Color Touch Panel
Rotary Push Encoder
Swipe Gestures for Fast Navigation



Advanced DSP for your System

Eight Recallable Snapshots
Fullrange Parametric 8 Band EQ
Up to 45 meters Delay

Precision Tuning

Top/Sub Alignment (meters/feet/ms)
Cardioid Function and L/R Balance for 2.1 systems

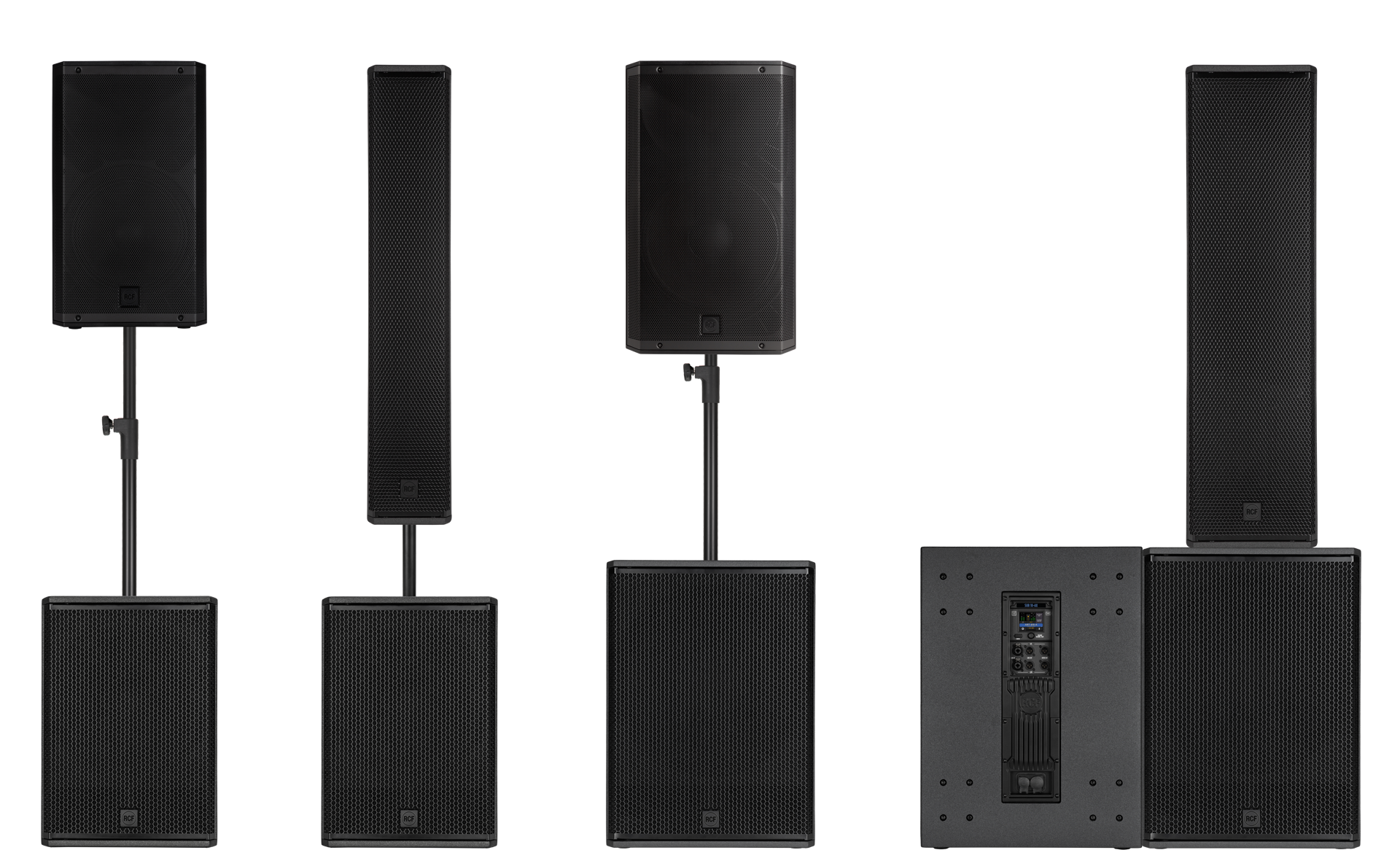

Configuration Examples

Compact 2.1 Configuration

Responsive Image
Responsive Image

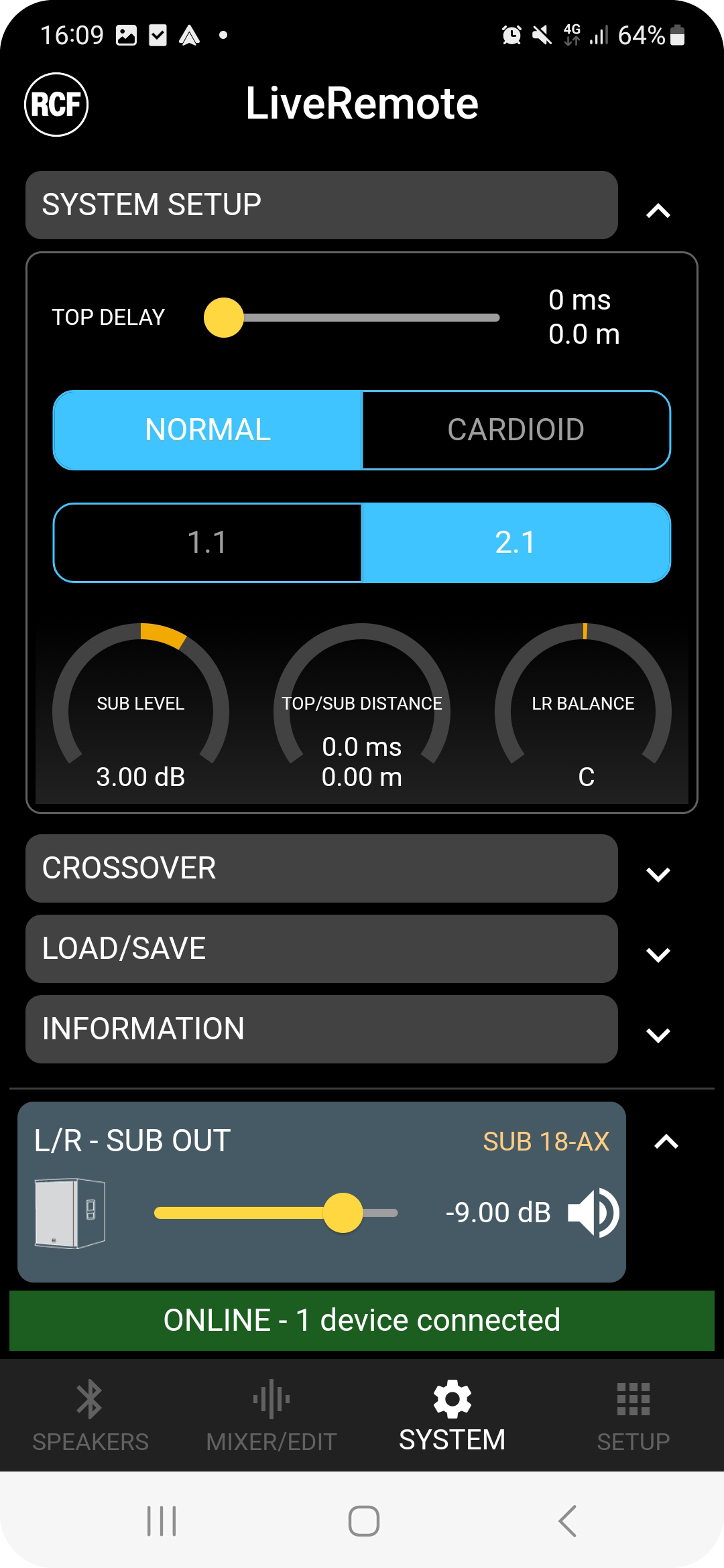

Configure the [SYSTEM SETUP] to 'NORMAL' and ' 2.1' to enable control of both satellite speakers from the subwoofer.

Compact Stereo Configuration

Responsive Image
Responsive Image
Configure the [SYSTEM SETUP] to 'NORMAL' and ' 1.1' to enable individual control of each satellite speaker from its corresponding subwoofer.

Stereo Column Configuration

Responsive Image
Responsive Image
Configure the [SYSTEM SETUP] to 'NORMAL' and ' 1.1' to enable individual control of each satellite speaker from its corresponding subwoofer.

Stereo Point Source Configuration

Responsive Image
Responsive Image

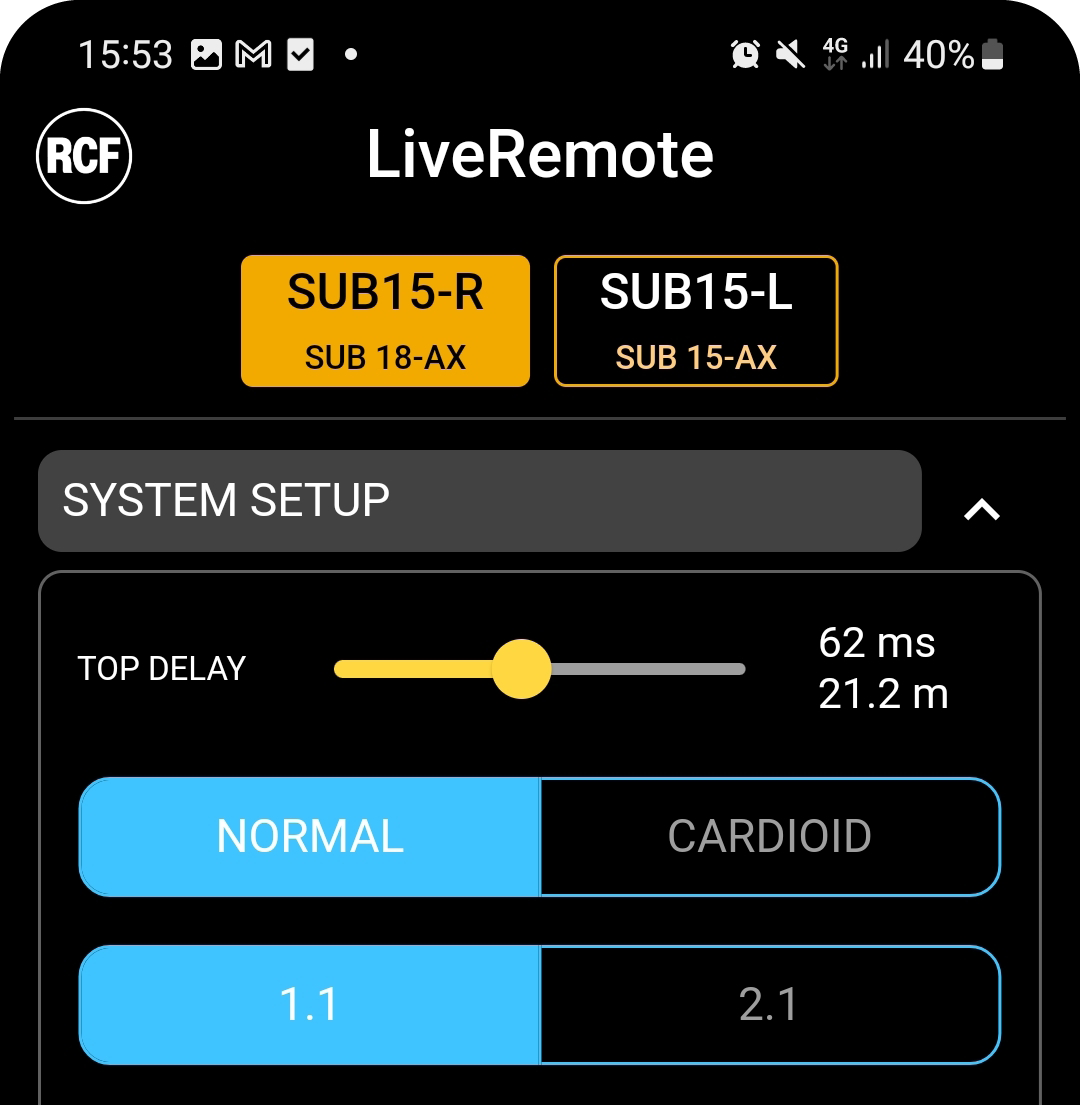

Configure the [SYSTEM] > [SYSTEM SETUP] to 'NORMAL' and ' 1.1' to enable individual control of each satellite speaker from its corresponding subwoofer.

High Power Stereo Column Configuration

Responsive Image
Responsive Image

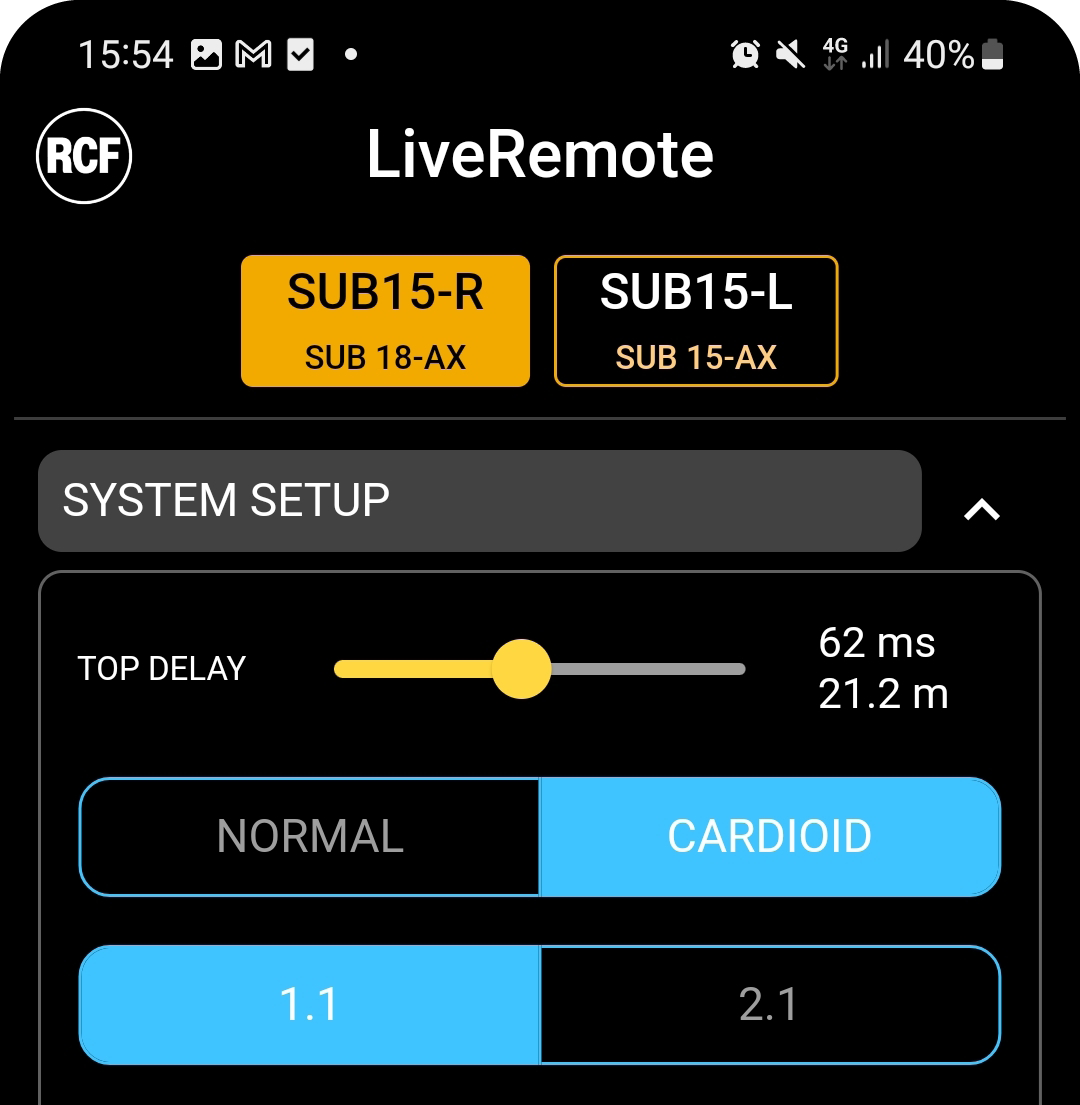

On rear-facing subwoofer unit: set [SYSTEM SETUP] to 'CARDIOID' for rear cancellation
Responsive Image
On main subwoofer unit: set [SYSTEM SETUP] to 'NORMAL'

On both subwoofer units: set [SYSTEM SETUP] to '1.1' to enable individual control of satellite speakers

A Live Experience that is Completely Mobile

With the RCF LiveRemote app, you can control up to 8 AX devices via Bluetooth® simultaneously from your smartphone or tablet. The app makes it easy to adjust internal parameters and save and recall presets. You can also use the app to control your entire sound system, with a fully featured 8-band EQ and advanced functions.

LiveRemote App

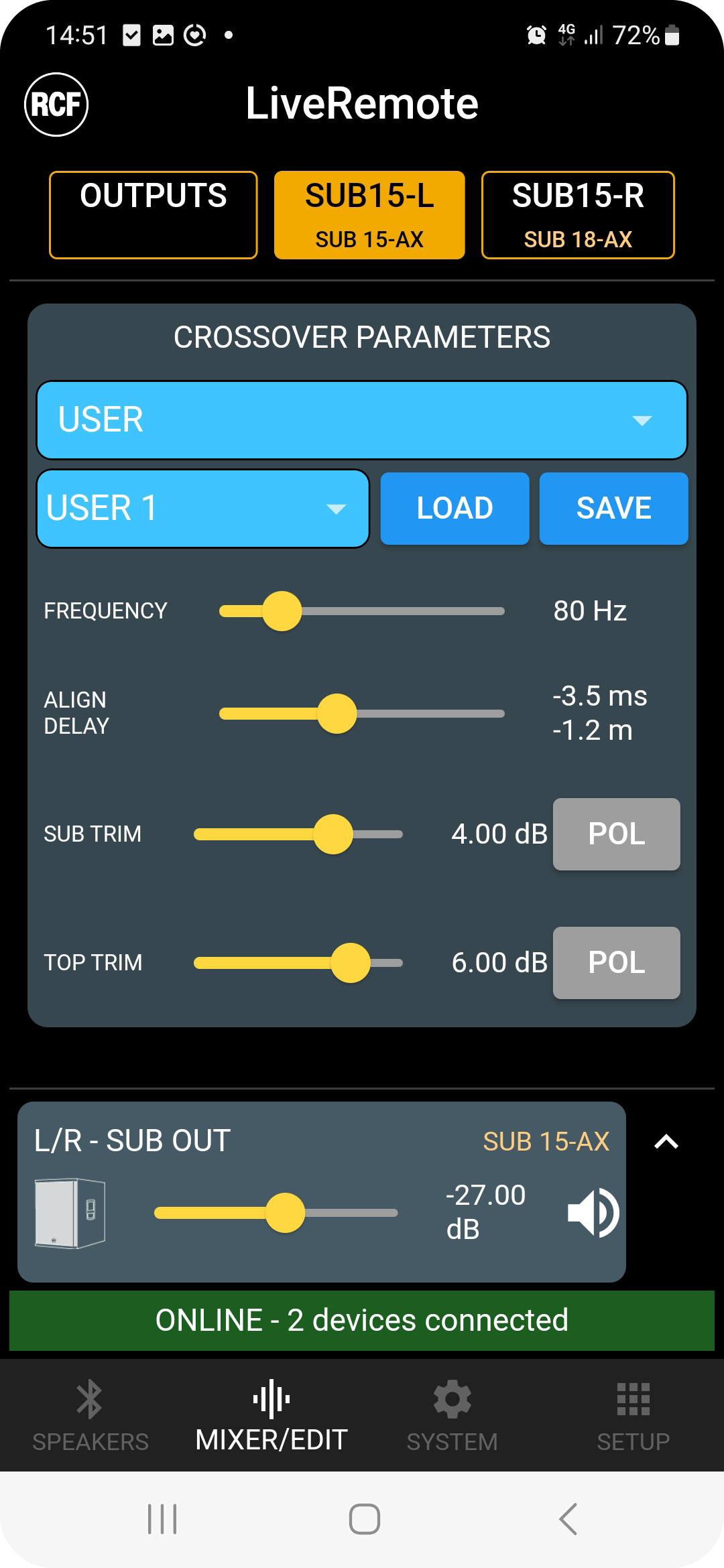

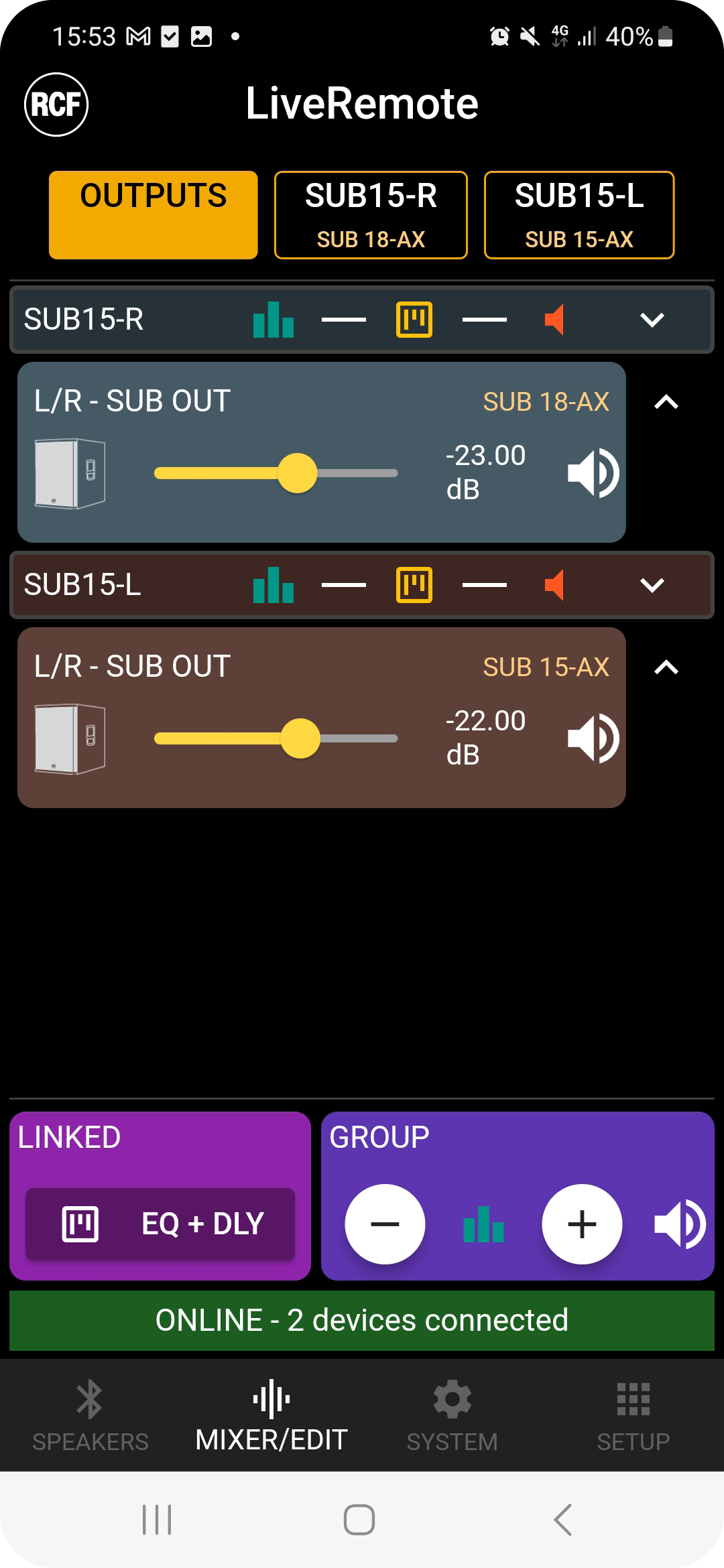

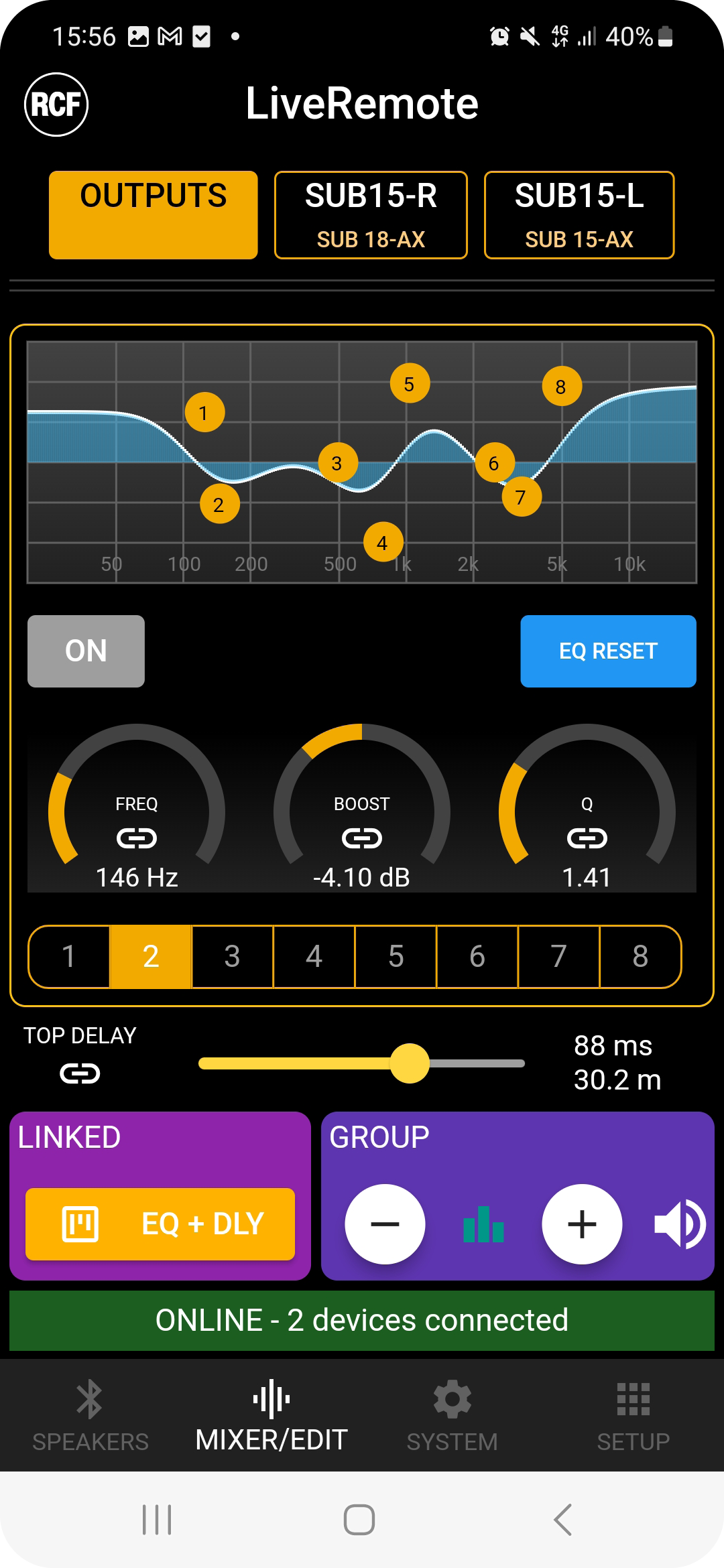

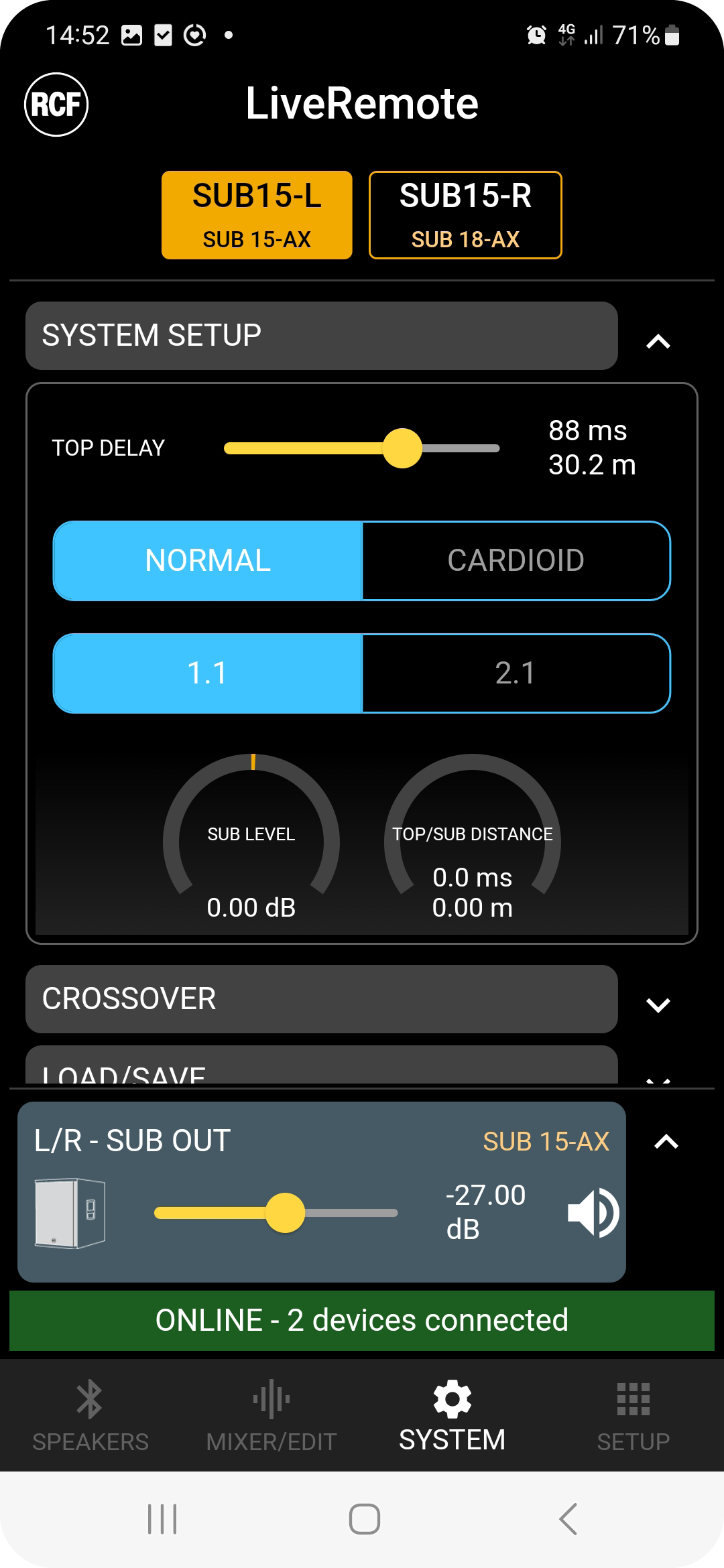

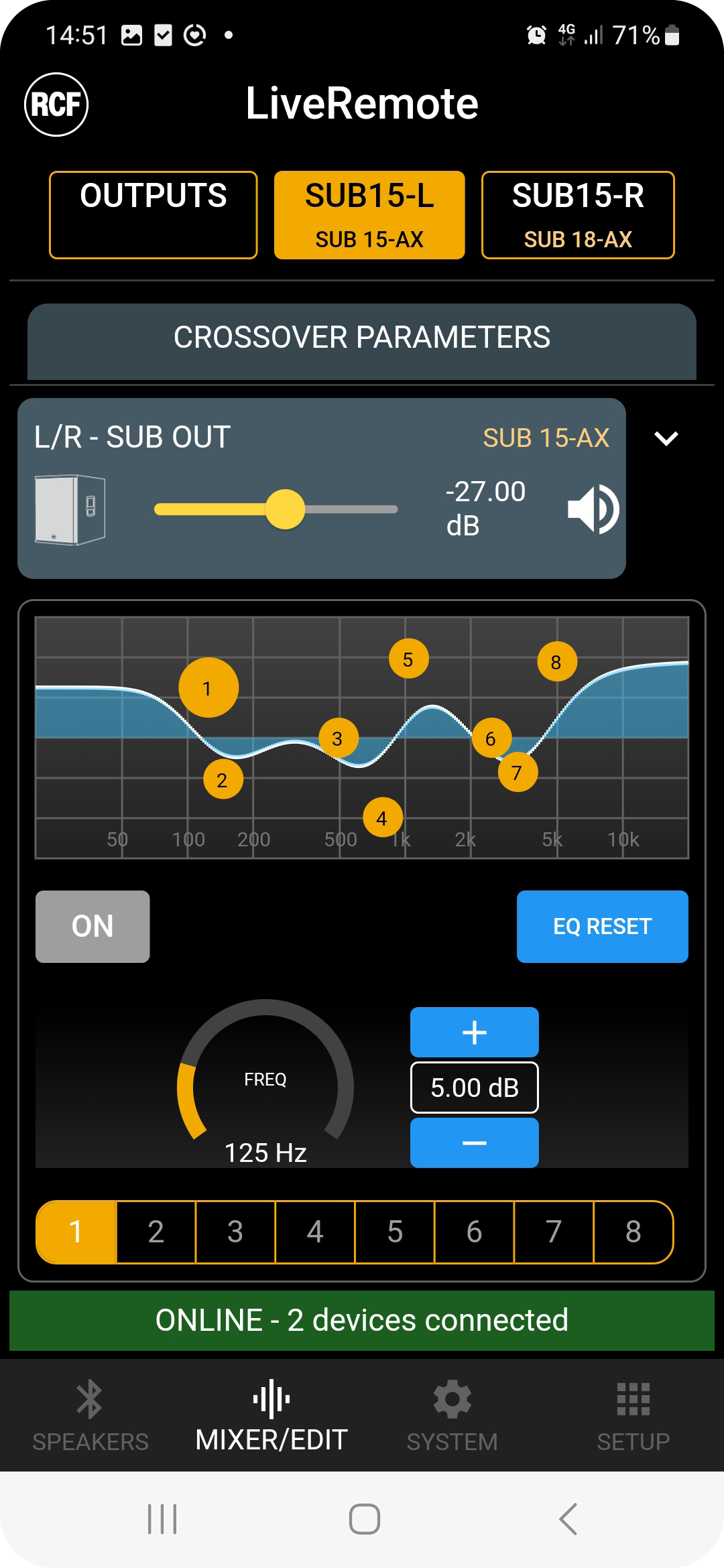

Whether you’re a musician, DJ, or pro sound engineer, the RCF LiveRemote App, the same app that is used with the  ART 9 AX, is now available with the SUB AX models. On the subs, crossover preset selection, system EQ and delay adjustments and crossover individual settings are quickly accessible. When two subwoofer models are paired, they can be set up for 2.2 operation. Available for Android and iOS phones and tablets.

Responsive Image
Responsive Image
Responsive Image
Responsive Image
Responsive Image
Responsive Image

Gig-Ready Solution

Responsive Image

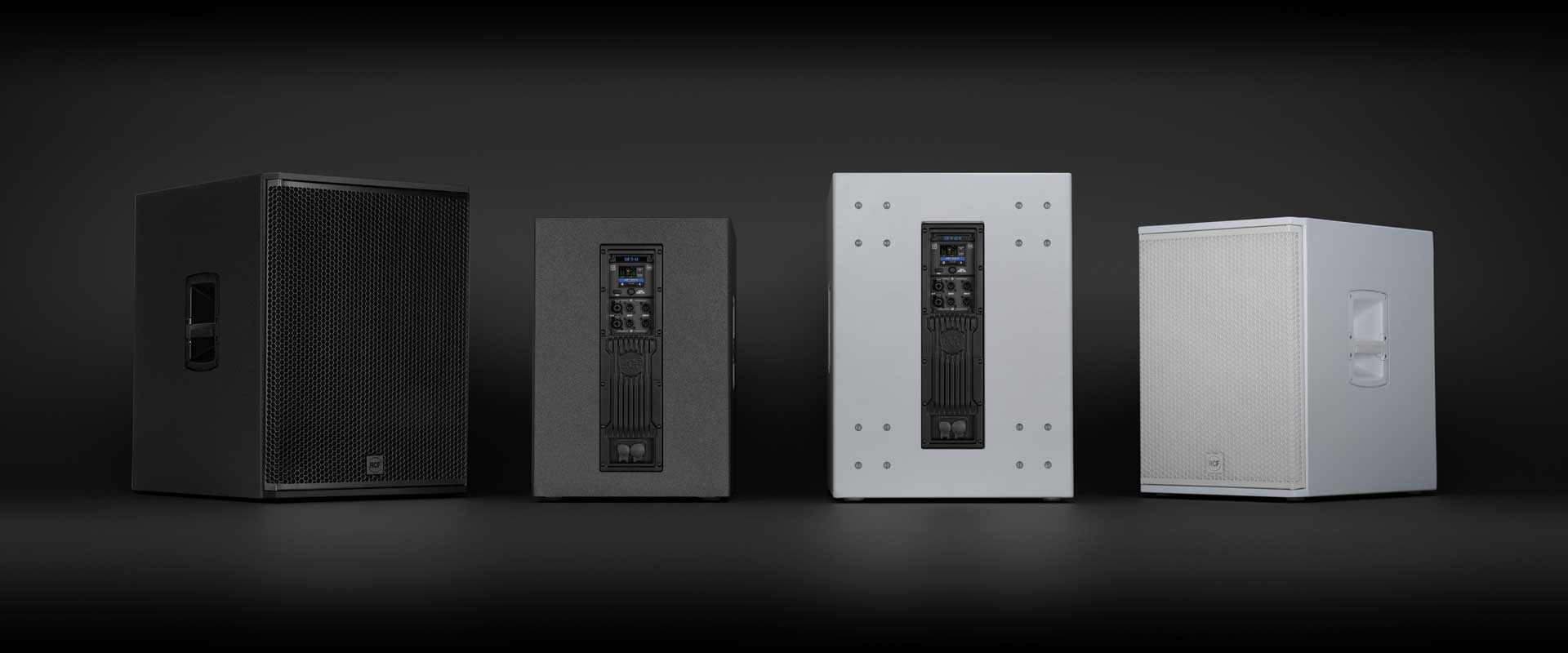

RCF cabinets are made of high-quality multi-ply hardwood coated with a rugged black (or white) polyurea finish. Subs are stackable and lightweight, have ergonomic handles with rubber grips, and are designed for easy set-up and tear-down. The M20 threaded pole mount on the top of the cabinet supports RCF speakers of various sizes. The powder-coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect transducers from dust. SUB AX Series subwoofers are built to last, with powerCON® TRUE1 TOP mains connectors, so you can be sure that they will stand up to the rigors of use and transport.
Responsive Image

Industry-Leading Subs

Lightweight and powerful, RCF woofers are a reference in high performance. RCF Precision Transducers engineers have developed new specific magnet sizes and molds to optimize magnetic flux while maintaining a low weight. The magnetic circuit topology is capable of delivering the highest, balanced level of performance in three specific areas: maintenance of a consistent, high integrity magnetic flux gap, exceptionally low distortion and efficiently integrating the magnetic circuit in a minimum weight design. The T-pole design optimization generates the minimum amount of flux modulation in the magnetic assembly during typical voice coil movement within the gap.
Responsive Image

Drive the Rhythm of the Beat

With 2,200 Watts of power, our Class-D amplifier can manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low thermal loss. The stereo input circuit features a low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section combining high efficiency with minimum weight.

Responsive Image
Responsive Image Responsive Image
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Responsive Image
