LIVE SOUND

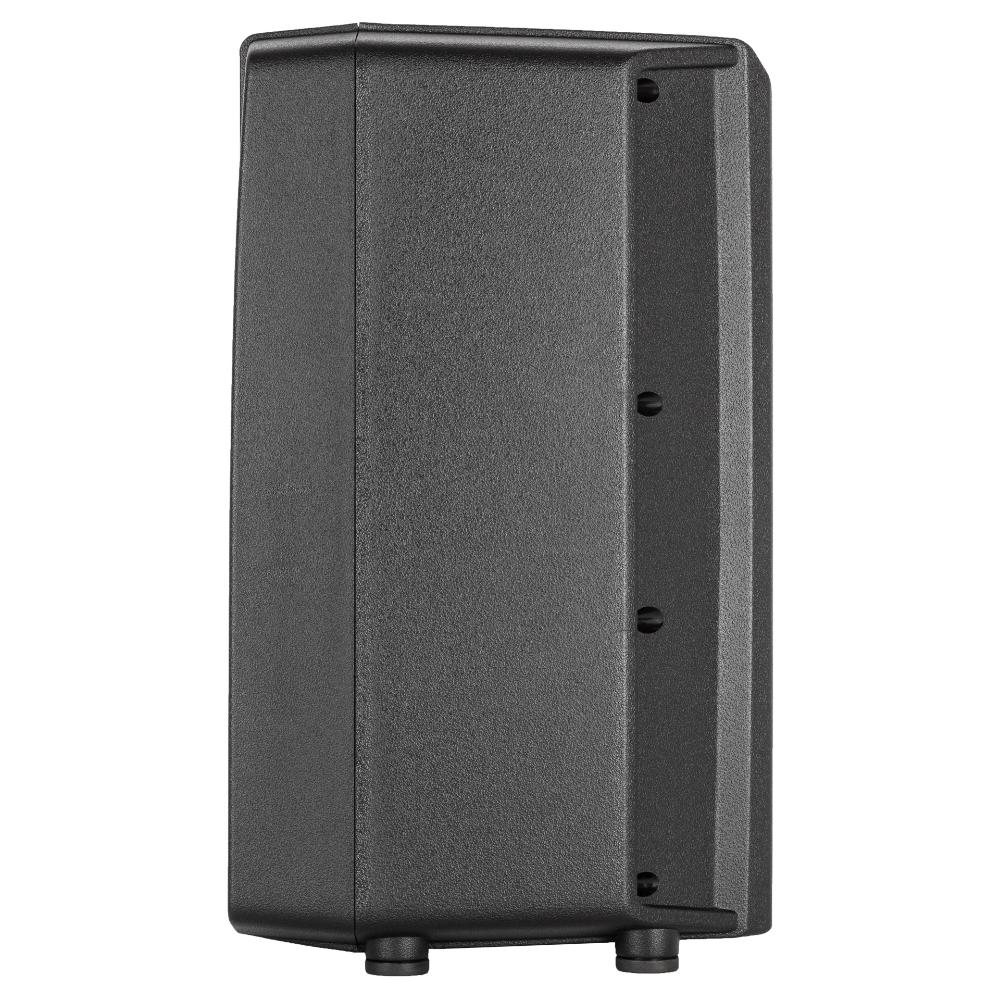

ART 708-A MK4

ACTIVE TWO-WAY SPEAKER
  • 127 dB Max SPL
  • 800 WATT 2-way peak power
  • 1" Compression Driver, 1.0" v.c.
  • FiRPHASE Technology
FiRPHASE
Where to buy
Features Specifications Accessories Related products videos Downloads
Where to buy
Features
  • 127 dB Max SPL
  • 800 WATT 2-way peak power
  • 90 x 70, Wide dispersion constant directivity horn
  • Innovative DSP Processing
  • 1" Compression Driver, 1.0" v.c.
  • 8" Woofer
  • FiRPHASE Technology

ART 708-A MK4 is a unique product in its category. The 1.0" compression driver offersunique vocal clarity and sound projection. The 8” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 800 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

READ MORE

Part number:

13000518
ART 708-A MK4
220-240V, EAN 8024530014803

13000519
ART 708-A MK4
115V, EAN 8024530015077

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Responsive Image

Superior transducers

Woofers and compression drivers are precision built taking advantage of RCF’s technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

Powerful class D amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Responsive Image
Responsive Image

Bring ART with you

The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.
Responsive Image
Specifications
Acoustical specifications
Frequency Response
60 Hz ÷ 20000 Hz
Max SPL @ 1m
127 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
Transducers
Compression Driver
1 x 1.0'', 1.0'' v.c
Woofer
1 x 8'', 2.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
Processor section
Crossover Frequencies
1600 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, Mic/Line
Power section
Total Power
800 W Peak, 400 W RMS
High frequencies
200 W Peak, 100 W RMS
Low frequencies
600 W Peak, 300 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M10
Handles
1 Top
Pole mount/Cap
Yes
Grille
Steel
Color
Black
Size / Weight
Height
480 mm / 18.9 inches
Width
291 mm / 11.46 inches
Depth
276 mm / 10.87 inches
Weight
10.4 kg / 22.93 lbs
Shipping information
Package Height
520 mm / 20.47 inches
Package Width
331 mm / 13.03 inches
Package Depth
346 mm / 13.62 inches
Package Weight
12.2 kg / 26.9 lbs
Accessories
Related products
videos

1 related videos

Downloads
MANUALS
USER MANUAL - ENG ITA
PDF
704 KB
08-04-2024
GUIDES
PRE-ALIGNMENT DELAYS
PDF
192 KB
09-05-2023
SPECIFICATIONS
SPECSHEET - DEU
PDF
2 MB
18-10-2024
SPECSHEET - ENG
PDF
2 MB
18-10-2024
SPECSHEET - FRA
PDF
2 MB
18-10-2024
SPECSHEET - ITA
PDF
2 MB
18-10-2024
SPECSHEET - SPA
PDF
2 MB
18-10-2024
ACOUSTIC MEASUREMENTS
PDF
256 KB
11-07-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
168 KB
05-07-2022
UKCA DECLARATION OF CONFORMITY - ENG
PDF
188 KB
11-07-2022
DRAWINGS
LINE ART 2D
DXF
5.5 MB
08-03-2024
LINE ART 2D
PDF
1.1 MB
08-03-2024
LINE ART 3D
ZIP
3.9 MB
22-01-2024
SOFTWARE
GLL
ZIP
596 KB
16-01-2018
PRODUCT REVIEWS
PRODUCT REVIEW - 2022-02-THE RETAILER - ENG
PDF
1.8 MB
01-03-2022
