Features
  • RDNet remote control
  • 4 x Class D amplifier, 2200 Watt total power
  • Premium-quality DSP with optimized phase response
  • 1.4" neo compression driver, 3.0" voice coil with a waveguide
  • 4 x 6.0" neo midranges
  • 2 x 12" neo woofers
  • 139 dB max SPL
  • Maximum output, perfect audio fidelity
  • Tour grade cabinet and mechanics
  • 90°x 30°

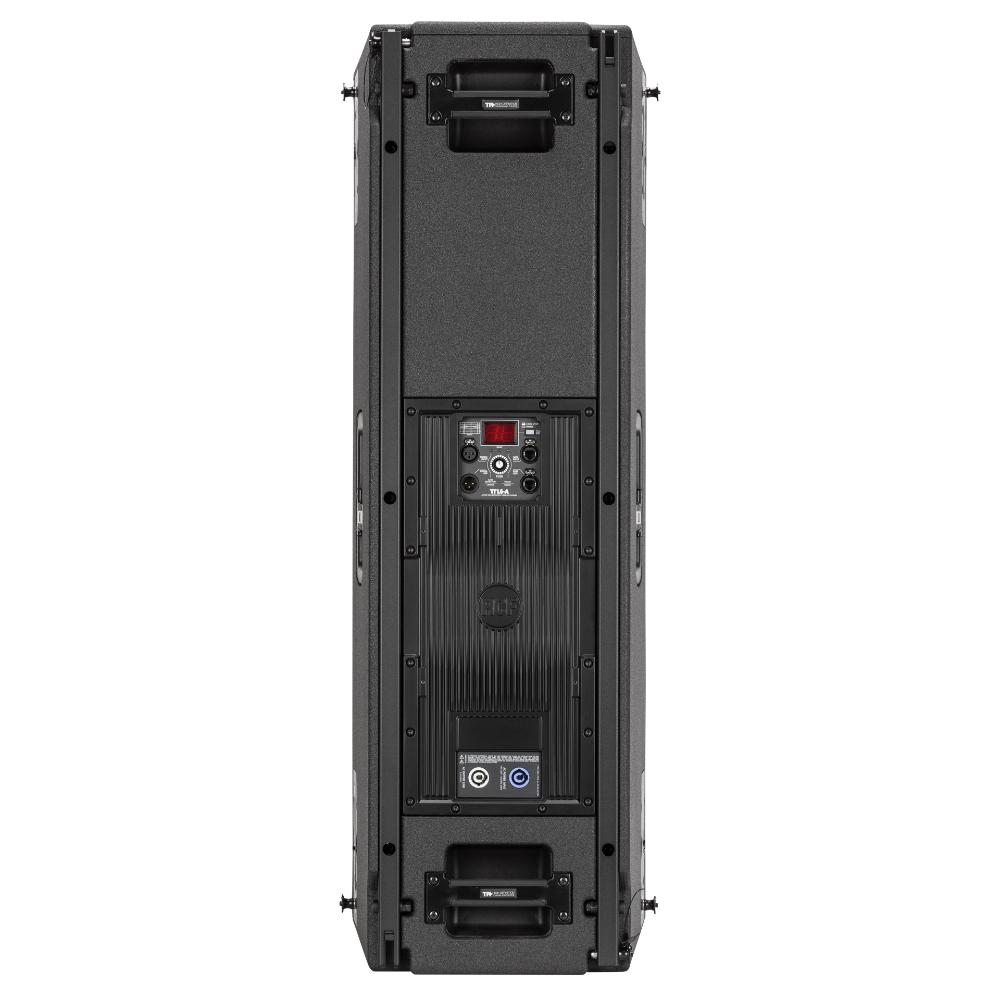

The TTL6-A is a high power, three way, active line source engineered to deliver high fidelity output for use indoors and outdoors, for medium to large spaces. TTL6-A provides all the advantages of line array technology, such as high direct sound, increased range and a uniform level distribution, with additional ease of use. It is the preferred sound set-up for stacked systems and when a wider dispersion is required. The 3-way TTL6-A line source is equipped with 2 x 12” low frequencies woofers, 4 x 6.5” midranges and a 3.0” voice coil compression driver with wave-guide for distinctive homogenous directivity. The integration of four channels of digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

Part number:

13000475
TTL 6-A
100-240V, EU, EAN 8024530013608

13000476
TTL 6-A
100-240V, US, EAN 8024530013592

Responsive Image

RCF RDNet

Networked control and much more
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
Responsive Image

Active advantage

An active sound system means having the power amplifier on-board of the cabinet. This brings some advantages:
  • Reduced setup time
  • Daisy chain signal and power connection of the entire system or by groups
  • No additional amplifier rack(s), saving space in the truck
  • The sound quality and performance are optimized to the individual components inside the speaker
  • The RDNet Networked Control can monitor each component of the system

Unique horn's design

The vertically asymmetrical horn's design accurately projects the sound energy and avoids unwanted reflections. This design allows to configure two perfectly cascading TTL 6-A, for an excellent control of directional characteristics. Intelligibility is significantly increased in difficult acoustic environments.
Responsive Image
Responsive Image

RCF precision transducers

  • Low frequencies - 2 x 3.0" voice coil neodymium 12" woofers
  • Mid frequencies - 4 x 2.0" voice coil 6.0" neodymium midranges
  • High frequencies - The ND840 large-format neodymium compression driver with 1.4'' exit throat delivers one of the key advantages of the TTL 6-A: the 3.0" voice coil allows a crossover point of 800Hz and therefore this driver can produce almost all of the vocal range. This allows better coverage and superior efficiency.
Responsive Image

Easy to handle, fly and install

The TTL 6-A is a versatile line array module allowing multiple installation options. Use it as a single speaker, as a large PA system or in combination with a subwoofer – the choice depends on the applications.
2 X SUSPENDED STRAIGHT - Very High SPL, Expanded vertical coverage
2 X SUSPENDED CURVED - Very Long Throw, Focused vertical coverage
1 X SUSPENDED - High SPL 30°, Constant Coverage
1 TTL 6-A + 1 SUBWOOFER TTS 36-   Portable Sound – Live Sound – DJs – Live Clubs
2 X TTL6-A STRAIGHT + 2 X BASS MODULE TTL6-AS-  Large Live Sound Event
2 X TTL6-A CURVED + 2 X BASS MODULE TTL6-AS - Large Live Sound Event

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
139 dB
Horizontal coverage angle
90°
Vertical coverage angle
30°
Transducers
Compression Driver
1 x 1.4'' neo, 3.0'' v.c
Midrange
4 x 6.0'' neo, 2.0'' v.c
Woofer
2 x 12'' neo, 3.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
+4 dBu
Processor section
Crossover Frequencies
200 Hz - 800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Close, Linear, Far, 2x Presets
RDNet
Yes
Power section
Total Power
4400 W Peak, 2200 W RMS
High frequencies
800 W Peak, 400 W RMS
Mid frequencies
1400 W Peak, 700 W RMS
Low frequencies
2200 W Peak, 1100 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Pole Mount, integrated
Handles
2 side, 2 back
Grille
Steel
Color
Black
Size
Height
1100 mm / 43.31 inches
Width
378 mm / 14.88 inches
Depth
468 mm / 18.43 inches
Weight
53 kg / 116.84 lbs
Shipping information
Package Height
430 mm / 16.93 inches
Package Width
1140 mm / 44.88 inches
Package Depth
520 mm / 20.47 inches
Package Weight
56 kg / 123.46 lbs
